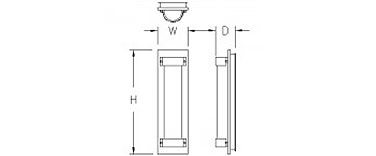

DIMENSIONS

W H D MC BASE MODEL NO.
6″ 21″ 4″ 10 1/2″ S9365-L12
6″ 27″ 4″ 13 1/2″ S9366-L16
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required  (by others).

FEATURES

• Opal Acrylic Lens
• Solid Aluminum Bar Stock Material
• UL Listed for Wet Location
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S9365-L12 + 27K + PT + Option
S9366-L16 30K BA
35K
40K
FINISHES

BA Brushed Aluminum PT Powder Coated Finishes*
**
*(Specify Color Code from the list of Powder Coating Finishes [except interior only metallics])
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote – Requires Additional Power Cable)

LIGHT OUTPUT

LXX = ~ 75 LPW Delivered Lumens (Example: L12= 12 x 75 = 900 Lumens)

** Try our new Shimmer Metalic Paints, Formulated for Exterior Conditions.
