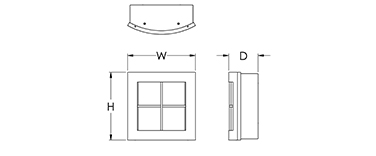

DIMENSIONS

W H D MC BASE MODEL NO.
14″ 14″ 6″ 7″ S9345-L36
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required  (by others).

FEATURES

• Opal Acrylic Lens
• Solid Aluminum Material
• Solid Aluminum Top
• Stainless Steel Fastener
• UL Listed for Wet Location
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S9345-L36 + 27K + PT + Option
30K
35K
40K
FINISHES

PT Powder Coated Finishes*
**
*(Specify Color Code from the list of Powder Coating Finishes [except interior only metallics])

OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)

LIGHT OUTPUT

LXX = ~ 62 LPW Delivered Lumens (Example: L36= 36 x 62 = 2,232 Lumens)

** Try our new Shimmer Metalic Paints, Formulated for Exterior Conditions.
