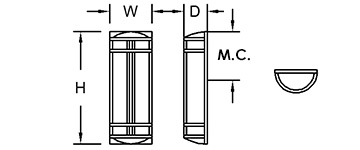

DIMENSIONS

W H D MC BASE MODEL NO.
7 1/2″ 19 1/4″ 4″ 9 5/8″ S3700-L16
7 1/2″ 25″ 4″ 12 1/2″ S3701-L24
7 1/2″ 38″ 4″ 19″ S3702-L32
7 1/2″ 48″ 4″ 24″ S3703-L48
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• Solid Aluminum Die Cast End-Caps
• Solid Aluminum Bar Stock
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish +  Option Code

S3700-L16 + 27K + PT BN + Option
S3701-L24 30K BA PB
S3702-L32 35K BB PC
S3703-L48 40K BC PN
FINISHES
BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome
BN Brushed Nickel		 PB Polished Brass
PC Polished Chrome
PN Polished Nickel
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
PMD Perforated Metal Diffuser

LIGHT OUTPUT

LXX = ~ 85 LPW Delivered Lumens (Example: L16= 16W x 85LPW = 1,360 Lumens)
