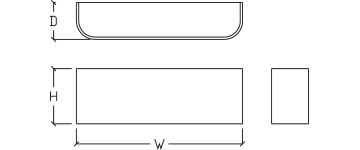

DIMENSIONS

W H D MC BASE MODEL NO.
12″ 6″ 4″ 3″ S3180-L18
18″ 6″ 4″ 3″ S3181-L24
24″ 6″ 4″ 3″ S3182-L32
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Solid Metal Front
• Top and Bottom Opal Matte Acrylic Lenses
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3180-L18 + 27K + PT + Option
S3181-L24 30K PB
S3182-L32 35K PC
40K
FINISHES

PB Polished Brass
PC Polished Chrome
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup

LIGHT OUTPUT

LXX = ~ 65 LPW Delivered Lumens (Example: L18= 18W x 65LPW = 1,170 Lumens)
