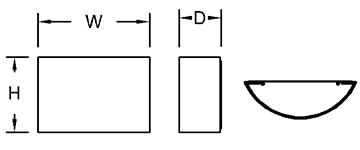

DIMENSIONS

W H D MC BASE MODEL NO.
12″ 7″ 4″ 3 1/2″ S3120-L14
16″ 8″ 8 1/2″ 4″ S3121-L18
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• Metal Unit with Open Top and Bottom
• Energy Star Qualified (120V Only)
• ADA Compliant (Only S3120)
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3120-L14 + 27K + PT + Option
S3121-L18 30K BA
35K PB
40K PC
FINISHES

BA Brushed Aluminum
PB Polished Brass
PC Polished Chrome
PT Painted Finishes*
*(Specify Color Code from Our Standard Finish Chart)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)
BTL Bottom Lens
TPL Top Lens

LIGHT OUTPUT

LXX = ~ 63 LPW Delivered Lumens (Example: L14= 14 x 63 = 882 Lumens)
