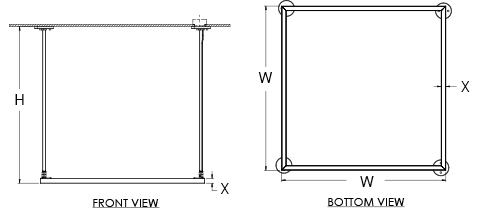

Print This PageDIMENSIONS
| W | X | H | BASE MODEL NO. |
| 25″ | 1 3/8″ | 60″ | S2C65-L48 |
| 36 1/2″ | 1 3/8″ | 60″ | S2C66-L72 |
| 48″ | 1 3/8″ | 60″ | S2C67-L96 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided

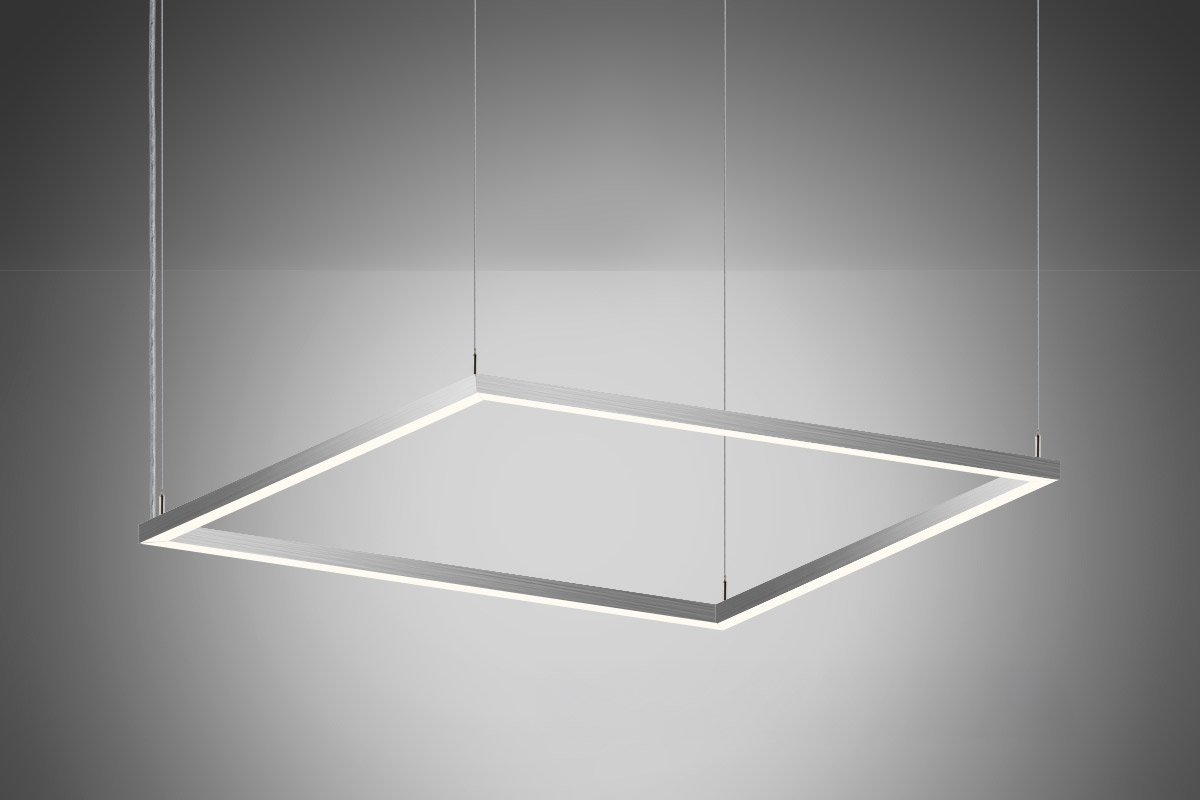

FEATURES
• Clear Silver Braided Cord with (4) Adjustable Aircraft Cables
• Continuous illuminated downlight lens
• Mitered and Welded Corners
• Constructed of Extruded Aluminum
• LED 0-10V Dimming Driver (in remote box above ceiling)
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + Finish + OA + Option Code
| S2C65-L48 | + | 27K | + | PT | CT | + | OA | + | Option |
| S2C66-L72 | 30K | BA | PWT | ||||||
| S2C67-L96 | 35K | NT | BST | ||||||
| 40K | GT | TT | |||||||
| ZT | CC |
FINISHES
| BA Brushed Aluminum NT Nickel Touch GT Gold Touch ZT Bronze Touch CT Copper Touch |
TT Toffee Touch PWT Pewter Touch BST Blackened Steel Touch CC Custom Painted Finish PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA96

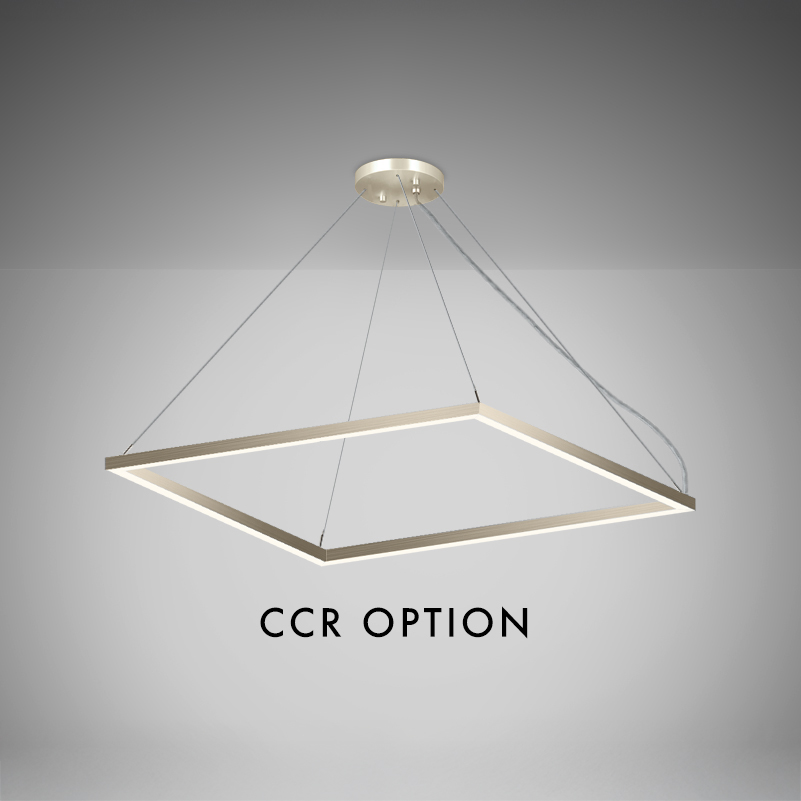

CCR Central Canopy Remote Driver
