DOWNLOADS

 Product Cutsheet

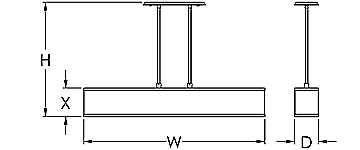

DIMENSIONS

W H D X BASE MODEL NO.
38″ 24″ 5″ 6″ S2495-L24
48″ 24″ 8″ 10″ S2496-L32
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic Bottom Diffuser
• Fabric Shades on Heavy Translucent White Styrene
• Two Stems
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + Fabric Code + OA +  Option Code

S2495-L24 + 27K + PT +
LF01 LF08
+ OA + Option
S2496-L32 30K BA
LF02 LF09
35K BB
LF03 LF10
40K BC
LF04 LF11
BN
LF05 LF12
PC
LF05 LF12
LF06 LF13
LF07 LF14
FINISHES
BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome		 BN Brushed Nickel
PC Polished Chrome
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
FABRIC
LF01 Huggy White LF02 Olive
LF03 Sage LF04 Orchre
LF05 Praline LF06 Linen
LF07 Canvas LF08 Butter
LF09 Breeze LF10 Ebony
LF11 Parchment LF12 Flan
LF13 Natural HF LF14 Merlot
CLF Custom Linen Fabric Shade (Consult Factory)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
SB2 Clear Silver Braided Cord with (2) Adjustable Aircraft Cables

LIGHT OUTPUT – (VARIES WITH SHADE COLOR)

LXX = ~ 60 LPW Delivered Lumens (Example: L24= 24W x 60LPW = 1,440 Lumens)[White Shade – LF01]
