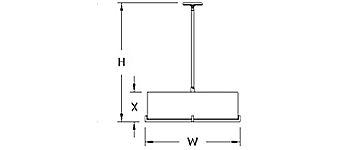

DIMENSIONS

W H X BASE MODEL NO.
24″ 30″ 7 1/2″ S2315-L36
30″ 30″ 8 1/2″ S2316-L60
36″ 30″ 9″ S2317-L72
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + OA +  Option Code

S2315-L36 + 27K + PT BN + OA + Option
S2316-L60 30K BA PB
S2317-L72 35K BB PC
40K BC PN
FINISHES

BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome
BN Brushed Nickel
PB Polished Brass
PC Polished Chrome
PN Polished Nickel
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]
SWC 35-Degree Swivel Canopy
2C Two-Circuit Wiring

LIGHT OUTPUT

LXX = ~ 85 LPW Delivered Lumens (Example: L36= 36W x 85LPW = 3,060 Lumens)
