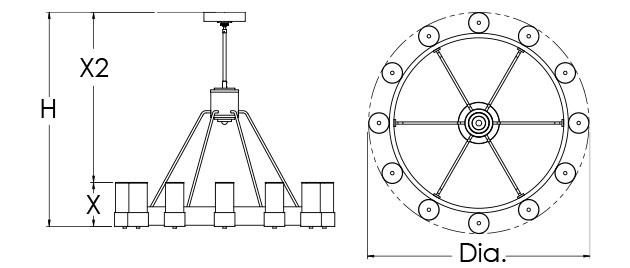

DIMENSIONS



Dia X X2 H BASE MODEL NO.
48″ 9 1/2″ 31 1/2″ 72″ S1040-8L08
48″ 9 1/2″ 31 1/2″ 72″ S1040-12L08
60″ 9 1/2″ 39 1/2″ 72″ S1041-8L08
60″ 9 1/2″ 39 1/2″ 72″ S1041-12L08
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided (Additional structural blocking required for weight)

FEATURES

• Closed Top Opal Matte Acrylic Lens
• LED Uplight ~8W per “Candle”
• LED 0-10V 1% Dimming Drivers

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish  + OA + Option Code

S1040-8L08 + 27K + PT PWT + OA + Option
S1040-12L08 30K BA BST
S1041-8L08 35K NT TT
S1041-12L08 40K GT CC
ZT BB
CT PB
FINISHES
BA Brushed Aluminum
NT Nickel Touch
GT Gold Touch
ZT Bronze Touch
CT Copper Touch
PWT Pewter Touch		 BST Blackened Steel Touch
TT Toffee Touch
CC Custom Painted Finish
BB Brushed Brass
PB Polished Brass
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA96

LIGHT OUTPUT

LXX = ~ 80 LPW Delivered Lumens (Example: 8L08= 8QTY x 8W x 80LPW = 5,120 Lumens)
