| Model No. + Lamp Code | CCT | Finish | Option Code |
| LW107-L08 | 27K | PT Powder Coated* | EML Emergency 10W LED Battery |
| 30K | BA Brushed Aluminum | Driver (Remote) | |
| 35K | PC Polished Chrome | BAC Buy America; Buy American Act; | |
| 40K | NT Nickel Touch | and Build America, Buy America Act | |
| GT Gold Touch | Compliant. | ||
| ZT Bronze Touch | |||
| CT Copper Touch | |||
| TT Toffee Touch | |||
| PWT Pewter Touch | |||
| BST Blackened Steel Touch | |||
| CC Custom Painted Finish | *(Specify Color Code from the list of Powder Coating Finishes) |
DIMENSIONS
| BASE MODEL NO. | H | W | D |
| LW107-L08 | 27″ | 12″ | 3 7/8″ |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES

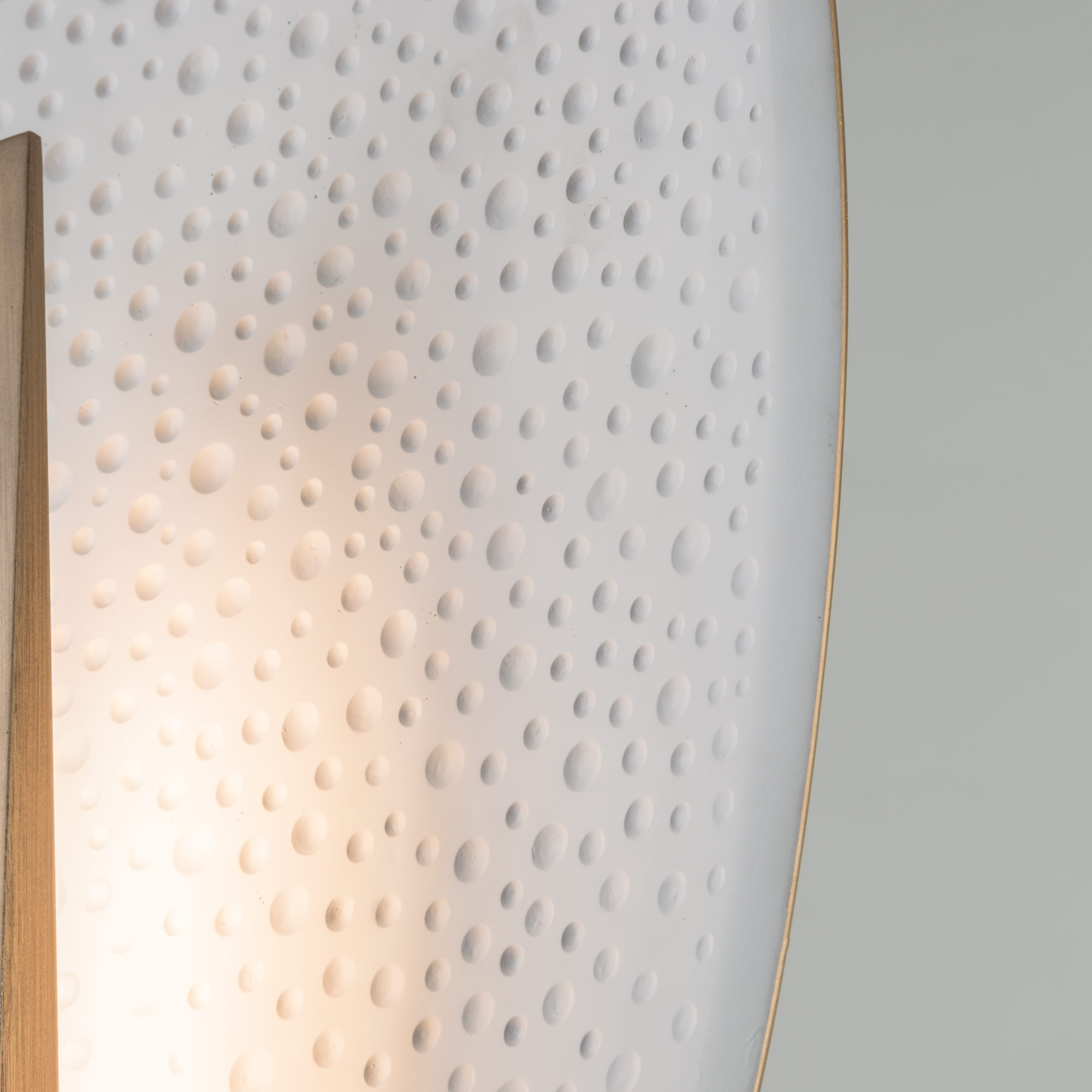

• White Ceramic Textured Bowl
• Internal Driver
• LED 0-10V Dimming Driver
LIGHT OUTPUT
LXX = ~ 90 LPW Delivered Lumens (Example: L08= 8W x 90LPW = 720 Lumens)
