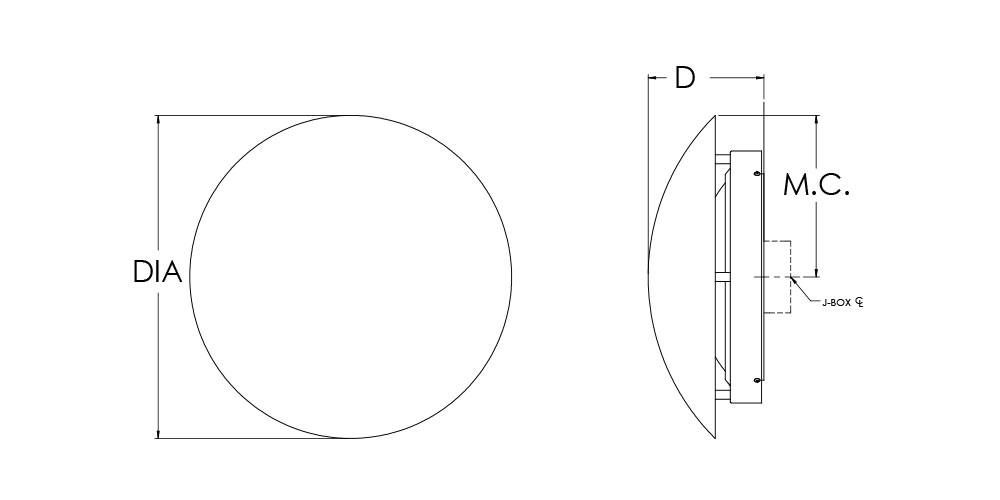

Print This PageDIMENSIONS
| Dia | D | MC | BASE MODEL NO. |
| 18″ | 6 7/16″ | 9″ | S9525-L21 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required (by others)
FEATURES
• Gasketed ABS Housing
• Aluminum Trim and Shade
• Opal Polycarbonate Lens
• UL Listed for Wet Location
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + Option Code
FINISHES
PT Powder Coated Finishes*
SD Shimmer Dimensional Metallic Finishes*
PF Pure Metal Finishes*
XT Trending Brushed Metal Finishes*
CC Custom Painted Finish
*(Specify Color Code from the list of Finishes [except interior only metallics] – ie. Gold Touch would be ‘GT’)
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
