S9465i Series

SHARE THIS PRODUCT

Print This Page

DOWNLOADS

L10 IES Files (.IES,.PDF, & .GOS)

L20 IES Files (.IES)

L20 IES Files (.PDF)

L20 IES Files (.GOS)

L20 IES Files (.IES,.PDF, & .GOS)

L35 IES Files (.IES)

L35 IES Files (.PDF)

L35 IES Files (.GOS)

L35 IES Files (.IES,.PDF, & .GOS)

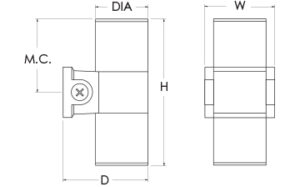

DIMENSIONS

Dia	W	H	D	MC	BASE MODEL NO.
3″	4 1/4″	9″	5 1/4″	4 1/2″	S9465i-L10
4″	4 1/4″	11″	6 5/8″	5 1/2″	S9466i-L20
5 3/4″	5 3/4″	13″	8 3/8″	6 1/2″	S9467i-L35

SPECIFICATIONS

Driver: 0-10V Dimming, 120/277/(Consult factory for 347V)
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required (By Others).

FEATURES

• Fixtures will be shipped with specified settings and beam spreads
• For any variation from standard, please contact factory

• See below for special features

• See special features on page 2

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Beam Spread + CCT + Finish + Option Code

S9465i-L10	+	V	+	30K	+	BL	+	Option
S9466i-L20		N		35K		BZ
S9467i-L35		M		35K
		W

FINISHES

BLMatte Black
BZ Bronze

BEAM SPREAD OPTIONS

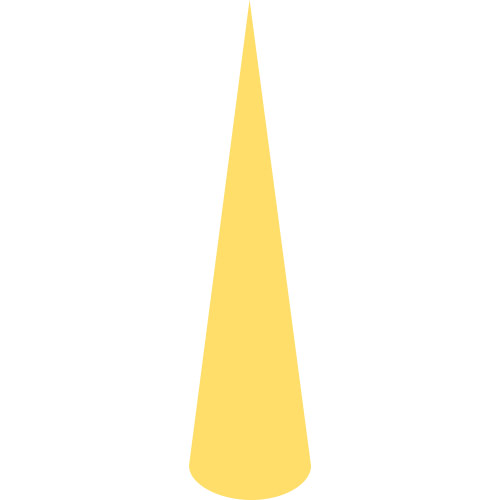

V Very Narrow (15 degrees)

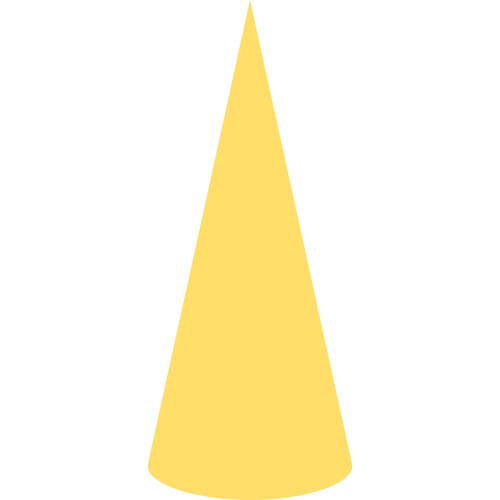

N Narrow (25 degrees)

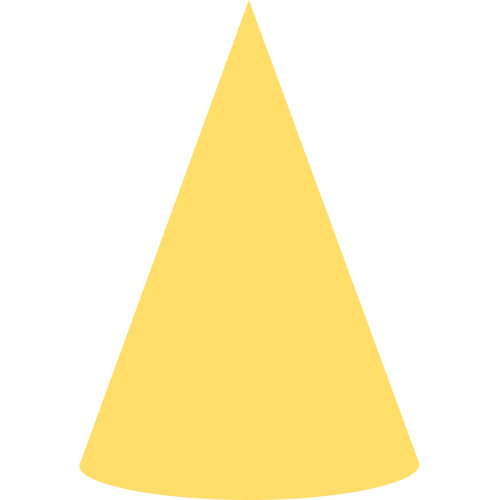

M Medium (40 degrees)

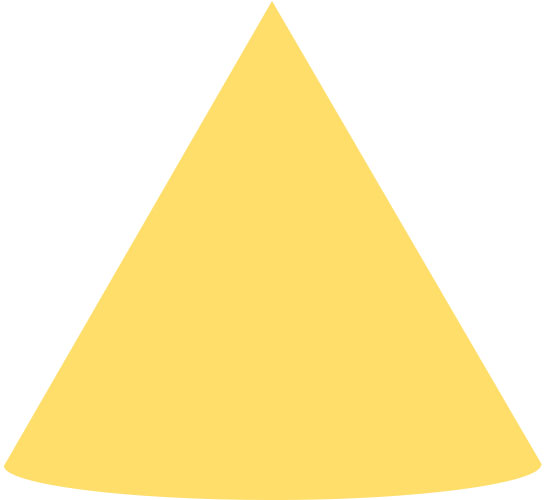

W Wide (60 degrees)

LIGHT OUTPUT

L10 = ~ 95 LPW Nominal Delivered Up and Down
(Example: L10= 10 x 95 = 950 Lumens)

L20 = ~ 95 LPW Nominal Delivered Up and Down
(Example: L20= 20 x 95 = 1,900 Lumens)

L35 = ~ 80 LPW Nominal Delivered Up and Down
(Example: L35= 35 x 80 = 2,800 Lumens)

SPECIAL FEATURES (these features come on all models)

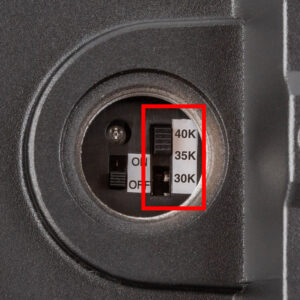

3 Color Temperatures
On board switch allows for on-site adjustment to 3000/3500K/4000K options.

Note: For factory Pre-set, please indicate the CCT
in the part number (ex: S9465i-L10-35K-BL)

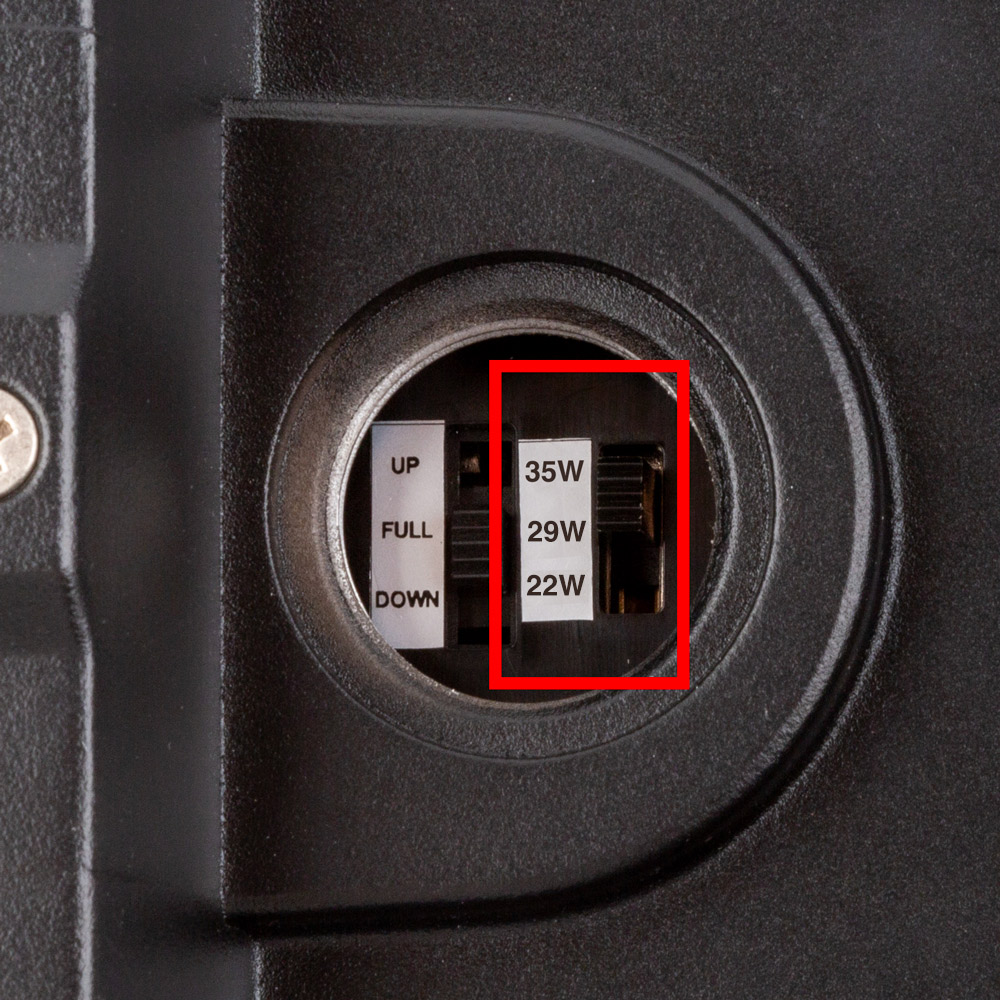

3 Light Levels
On Board Switch allows for on-site adjustment to 3 light levels.

10W/8W/6W
20W/16W/12W
35W/29W/22W

Note: For Factory Pre-Set Watts, please indicate the Wattage
in the part number (ex: S9465i-L06-30K-BZ)

Photosensor
On Board Sensor and Switch allows an internal photocell to be turned on or off as needed.

NOTE: For Factory Pre-Set to ON, please indicate
in the part number (ex: S9465i-L10-40K-BL-PS)

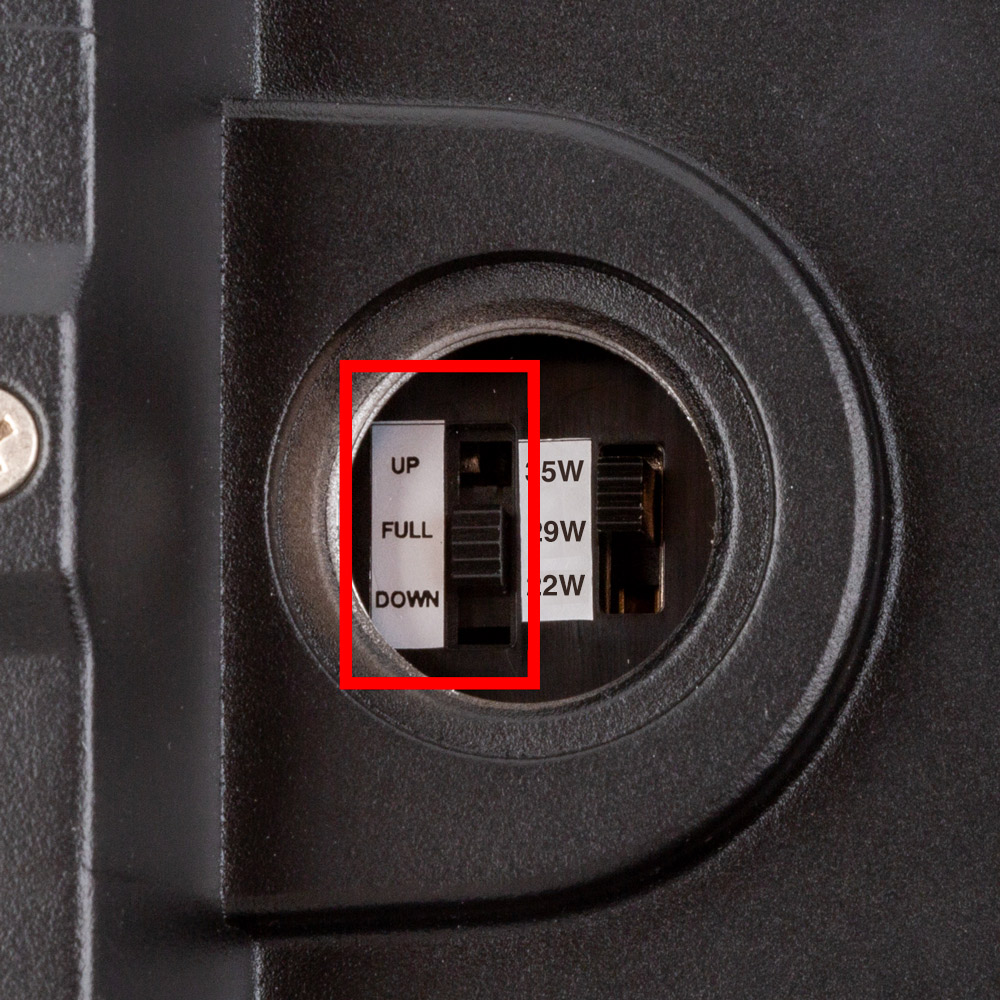

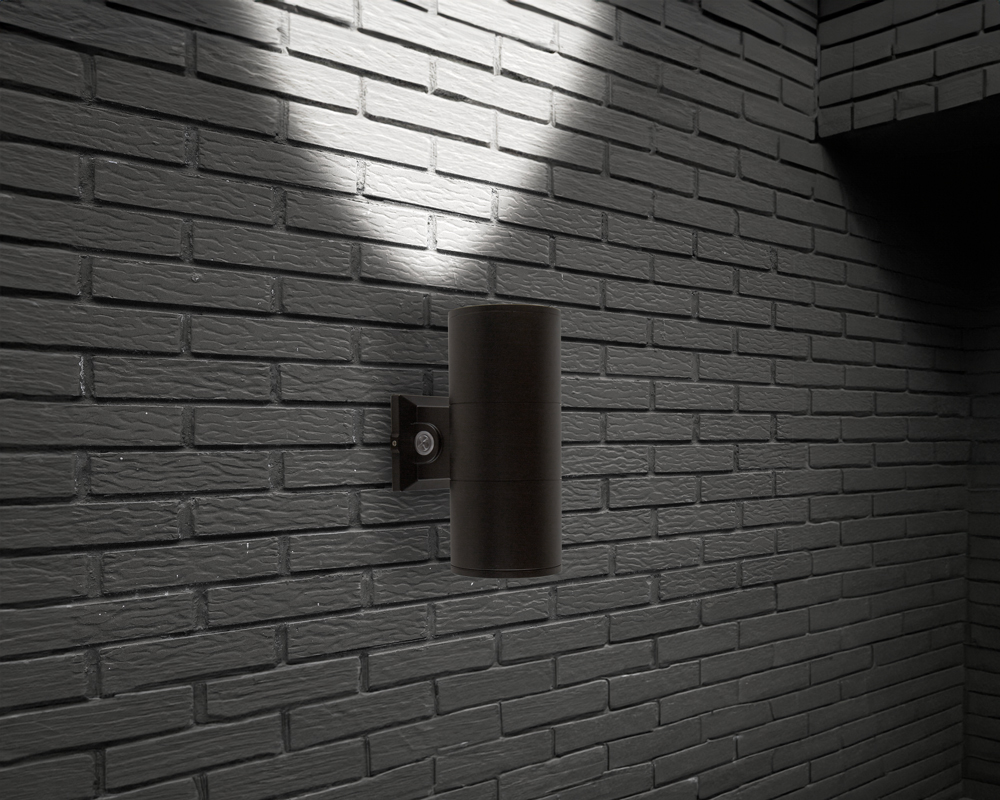

Up/Down
On Board Switch allows for on-site setting of Combined up and downlight,
Uplight Only or Downlight Only options.

Up/Down – (Blank – standard)
Uplight Only – (UO)
Downlight Only – (DO)

NOTE: For Factory Pre-Set, please indicate the position
in the part number (ex: S9465i-L10-40K-BL-PS-UO)
