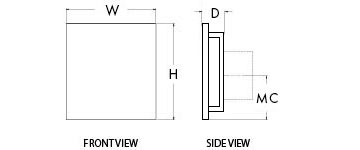

Print This PageDIMENSIONS
| H | W | D | MC | BASE MODEL NO. |
| 16″ | 16″ | 4″ | 8″ | S9450-L32 (4-Directional Light) |
| 16″ | 16″ | 4″ | 8″ | S9451-L08 (Downlight Only) |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required (by others)
FEATURES
• Opal Matte Acrylic Lens
• Solid Aluminum Material
• UL Listed for Wet Location
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + Option Code
| S9450-L32 | + | 27K | + | PT | + | Option |
| S9451-L08 | 30K | CC | ||||
| 35K | BA | |||||
| 40K | NT | |||||
| GT | ||||||
| CT | ||||||
| ZT |
FINISHES
| BA Brushed Aluminum PC Polished Chrome NT Nickel Touch GT Gold Touch |
CT Copper Touch ZT Bronze Touch CC Custom Painted Finish PT Powder Coated Finishes* ** |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
** Try our new Shimmer Metalic Paints, Formulated for Exterior Conditions.
LIGHT OUTPUT
LXX = ~ 75 LPW Delivered Lumens (Example: L32= 32W x 75 LPW = 2,400 Lumens)
