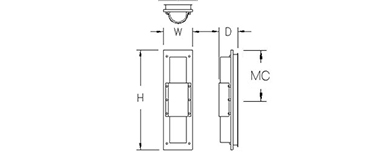

DIMENSIONS

W H D MC BASE MODEL NO.
6″ 21″ 4″ 10.5″ S9300-L14
6″ 27″ 4″ 13 1/2″ S9301-L18
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required  (by others).

FEATURES

• Opal Matte Acrylic Lens
• Solid Aluminum Material
• UL Listed for Wet Location
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S9300-L14 + 27K + PT + Option
S9301-L18 30K BA
35K
40K
FINISHES

BA Brushed Aluminum PT Painted Finishes*
**
*(Specify Color Code from Our Standard Finish Chart)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)

LIGHT OUTPUT

LXX = ~ 85 LPW Delivered Lumens (Example: L14= 14 x 69 = 966 Lumens)

** Try our new Shimmer Metalic Paints, Formulated for Exterior Conditions.
