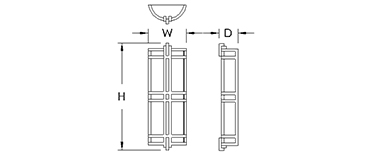

Print This PageDIMENSIONS
| W | H | D | MC | BASE MODEL NO. |
| 15″ | 30″ | 7 1/2″ | 15″ | S9290-L34 |
| 15″ | 42″ | 7 1/2″ | 21″ | S9291-L60 |
| 15″ | 54″ | 7 1/2″ | 26″ | S9292-L72 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required (by others).

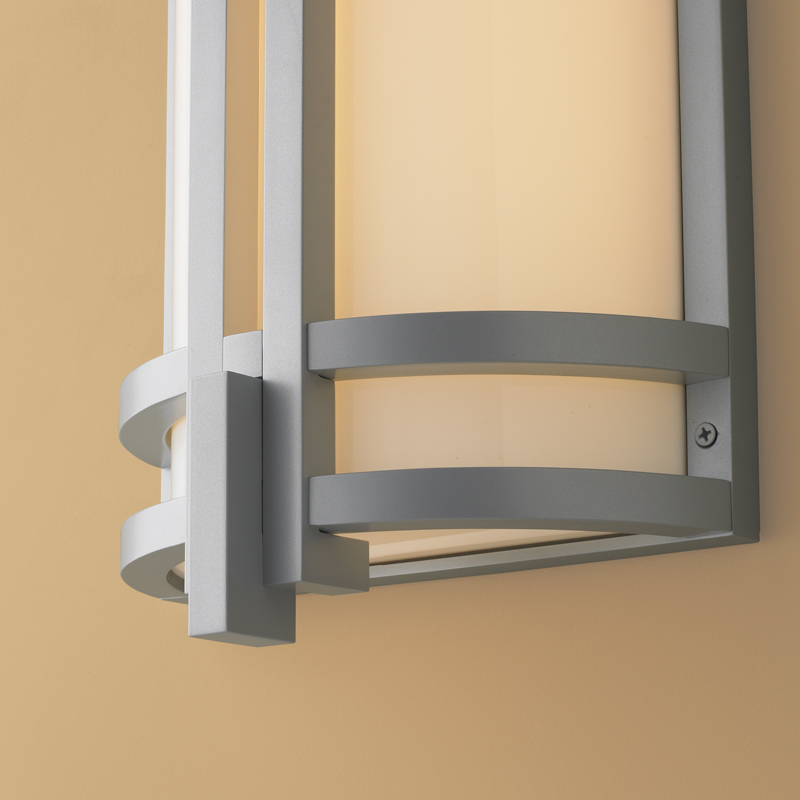

FEATURES
• Opal Acrylic Lens
• Solid Aluminum Bar Stock Material
• Stainless Steel Fastener
• UL Listed for Wet Location
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + Option Code
| S9290-L34 | + | 27K | + | PT | + | Option |
| S9291-L60 | 30K | BA | ||||
| S9292-L72 | 35K | |||||
| 40K |
FINISHES
| BA Brushed Aluminum | PT Powder Coated Finishes* ** |
| *(Specify Color Code from the list of Powder Coating Finishes [except interior only metallics]) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
LIGHT OUTPUT
LXX = ~ 72 LPW Delivered Lumens (Example: L34= 34W x 72LPW = 2,448 Lumens)
** Try our new Shimmer Metalic Paints, Formulated for Exterior Conditions.
