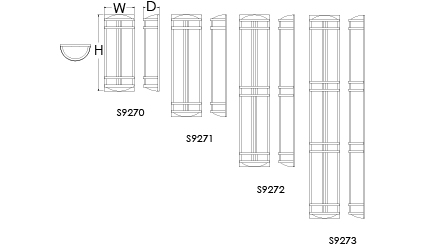

DIMENSIONS

W H D MC BASE MODEL NO.
7 3/4″ 18 1/4″ 4″ 9 1/8″ S9270-L24
7 3/4″ 24 1/4″ 4″ 12 1/8″ S9271-L32
7 3/4″ 36″ 4″ 18″ S9272-L48
7 3/4″ 48″ 4″ 24″ S9273-L68
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required  (by others).

FEATURES

• Opal Matte Acrylic Lens
• Solid Aluminum Die Case End-Caps
• Solid Aluminum Bar Stock
• ADA Compliant
• UL Listed for Wet Locations
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish +  Option Code

S9270-L24 + 27K + PT + Option
S9271-L32 30K CC
S9272-L48 35K BA
S9273-L68 40K NT
GT
CT
ZT
TT
PWT
BST
FINISHES
BA Brushed Aluminum
PC Polished Chrome
NT Nickel Touch
GT Gold Touch
CT Copper Touch
ZT Bronze Touch		 TT Toffee Touch
PWT Pewter Touch
BST Blackened Steel Touch
CC Custom Painted Finish
PT Powder Coated Finishes*
**
*(Specify Color Code from the list of Powder Coating Finishes [except interior only metallics])
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup

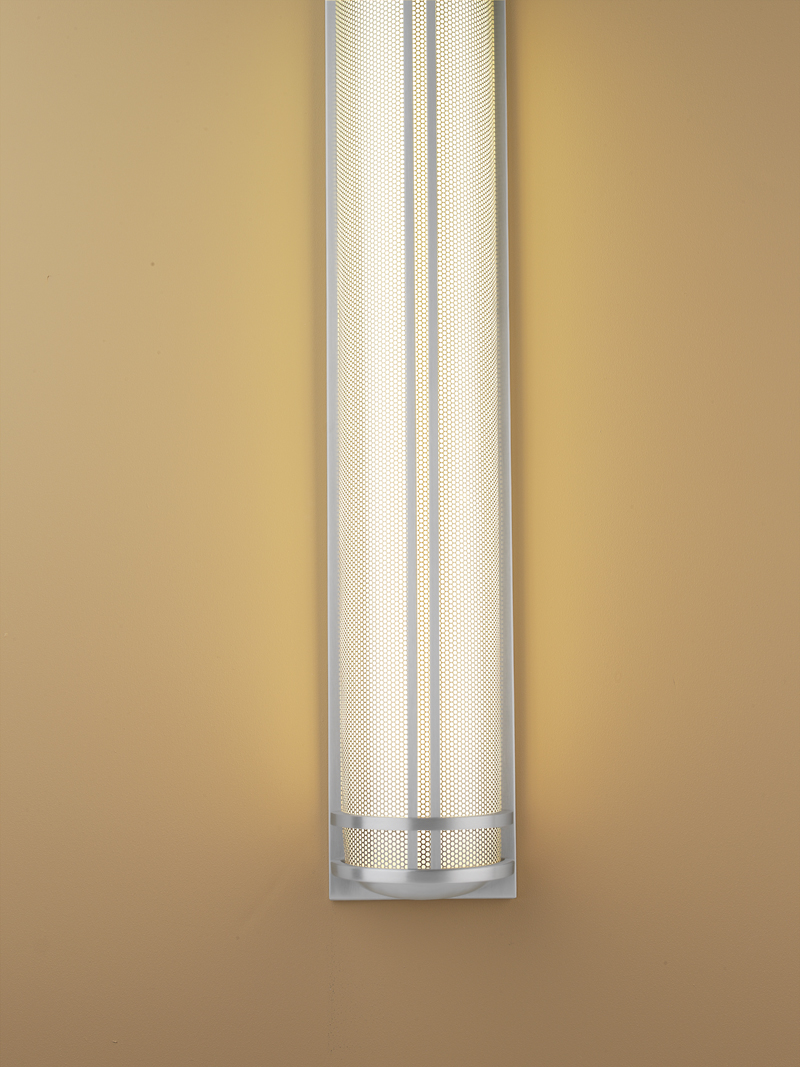

PMD Perforated Metal Diffuser

LIGHT OUTPUT

LXX = ~ 74 LPW Delivered Lumens (Example: L24= 24W x 74LPW = 1,776 Lumens)

** Try our new Shimmer Metalic Paints, Formulated for Exterior Conditions.
