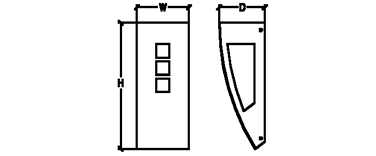

DIMENSIONS

W H D MC BASE MODEL NO.
8″ 18″ 7″ 7″ S9200-L16
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required  (by others).

FEATURES

• Opal Acrylic Panels
• UL Listed for Wet Location
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S9200-L16 + 27K + PT + Option
30K BA
35K
40K
FINISHES

BA Brushed Aluminum PT Powder Coated Finishes*
**
*(Specify Color Code from the list of Powder Coating Finishes [except interior only metallics])
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup

LIGHT OUTPUT

LXX = ~ 61 LPW Delivered Lumens (Example: L16= 16W x 61LPW = 976 Lumens)

** Try our new Shimmer Metalic Paints, Formulated for Exterior Conditions.
