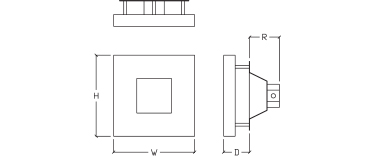

DIMENSIONS

W H D R MC BASE MODEL NO.
14″ 14″ 4 1/2″ 5 5/8″ 7″ S9050-L36
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required  (by others).

FEATURES

• Semi-Recessed Lamp Housing
• Luminous Polycarbonate Lens
• Custom Face Patterns Available -(Consult Factory)
• UL Listed for Wet Location
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S9050-L36 + 27K + PT + Option
30K TC
35K
40K
FINISHES
TC Tahoe Copper PT Powder Coated Finishes*
**
*(Specify Color Code from the list of Powder Coating Finishes [except interior only metallics])
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
SM Surface Mount Housing (Integral Ballast)

LIGHT OUTPUT

LXX = ~ 50 LPW Delivered Lumens (Example: L36= 36W x 50LPW = 1,800 Lumens)

** Try our new Shimmer Metalic Paints, Formulated for Exterior Conditions.
