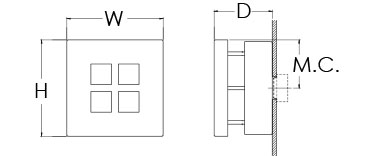

DIMENSIONS

W H D R BASE MODEL NO.
14″ 14″ 4 1/2″ 5 5/8″ S9045-L36
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required  (by others).

FEATURES

• Semi-Recessed Lamp Housing
• Luminous Polycarbonate Lens
• Custom Face Patterns Available -(Consult Factory)
• UL Listed for Wet Location
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S9045-L36 + 27K + PT + Option
30K TC
35K VG
40K
FINISHES

TC Tahoe Copper
VG Verdigris
PT Painted Finishes*
**
*(Specify Color Code from the list of Powdercoat finishes [except interior only metallics])
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)
SM Surface Mount Housing (Integral Ballast)

LIGHT OUTPUT

LXX = ~ 50 LPW Delivered Lumens (Example: L36= 36 x 50 = 1,800 Lumens)

** Try our new Shimmer Metalic Paints, Formulated for Exterior Conditions.
