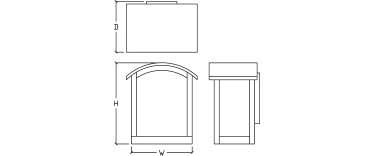

DIMENSIONS

W H D MC BASE MODEL NO.
11″ 11 1/2″ 5″ 6″ S9025-L16
14″ 16″ 10″ 6 7/8″ S9026-L18
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required  (by others).

FEATURES

• Opal Acrylic Panels Standard
• UL Listed for Wet Location
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S9025-L16 + 27K + PT + Option
S9026-L18 30K AB
35K AP
40K TC
VG
FINISHES

AB Aged Brass
AP Aged Pewter
TC Tahoe Coppe
VG Verdigris
PT Painted Finishes*
**
*(Specify Color Code from Our Standard Finish Chart)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)
SG Seedy Glass
WOG Opal Glass

LIGHT OUTPUT

LXX = ~ 74 LPW Delivered Lumens (Example: L16= 16 x 74 = 1,184 Lumens)

** Try our new Shimmer Metalic Paints, Formulated for Exterior Conditions.
