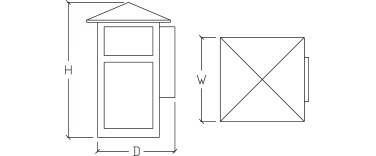

DIMENSIONS

W H D MC BASE MODEL NO.
9 1/2″ 15 1/4″ 10″ 8″ S9015-L24
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required  (by others).

FEATURES

• Opal Acrylic Panels Standard
• UL Listed for Wet Location
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S9015-L24 + 27K + PT + Option
30K AB
35K AP
40K TC
VG
FINISHES
BA Brushed Aluminum
PC Polished Chrome
NT Nickel Touch
GT Gold Touch		 CT Copper Touch
CC Custom Painted Finish
PT Powder Coated Finishes*
**
*(Specify Color Code from the list of Powder Coating Finishes [except interior only metallics])
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
SG Seedy Glass
WOG Opal Glass

LIGHT OUTPUT

LXX = ~ 74 LPW Delivered Lumens (Example: L24 = 24W x 74LPW = 1,776 Lumens)

** Try our new Shimmer Metalic Paints, Formulated for Exterior Conditions.
