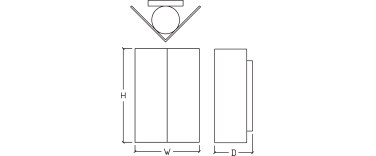

DIMENSIONS

W H D MC BASE MODEL NO.
12″ 16 1/2″ 7″ 8″ S9005-L24
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required (by others).

FEATURES

• UL Listed for Wet Location
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S9005-L24 + 27K + PT + Option
30K AB
35K AP
40K TC
VG
FINISHES

AB Aged Brass
AP Aged Pewter
TC Tahoe Coppe
VG Verdigris
PT Painted Finishes*
**
*(Specify Color Code from Our Standard Finish Chart)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)

LIGHT OUTPUT

LXX = ~ 52 LPW Delivered Lumens (Example: L24= 24 x 52 = 1,248 Lumens)

** Try our new Shimmer Metalic Paints, Formulated for Exterior Conditions.
