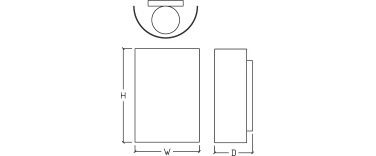

DIMENSIONS

W H D MC BASE MODEL NO.
11″ 16 1/2″ 6 1/2″ 8″ S9000-L24
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required  (by others).

FEATURES

• UL Listed for Wet Location
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S9000-L24 + 27K + PT + Option
30K AB
35K AP
40K TC
FINISHES
AB Aged Brass
AP Aged Pewter		 TC Tahoe Copper
PT Powder Coated Finishes*
**
*(Specify Color Code from the list of Powder Coating Finishes [except interior only metallics])
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup

LIGHT OUTPUT

LXX = ~ 50 LPW Delivered Lumens (Example: L24 = 24W x 50LPW = 1,200 Lumens)

** Try our new Shimmer Metalic Paints, Formulated for Exterior Conditions.
