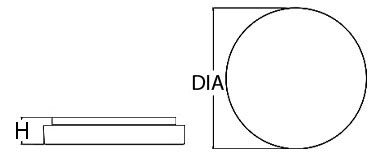

DIMENSIONS

H Dia BASE MODEL NO.
5 3/8″ 24″ S7800-L48
5 3/8″ 24″ S7800-L60
5 3/8″ 30″ S7801-L60
5 3/8″ 30″ S7801-L72
5 3/8″ 36″ S7802-L96
5 3/8″ 36″ S7802-L120
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic Lens
• Integral Drivers
• Solid Aluminum Material
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S7800-L48 + 27K + PT + Option
S7800-L60 30K NT
S7801-L60 35K GT
S7801-L72 40K CT
S7802-L96 ZT
S7802-L120 TT
PWT
BST
FINISHES

NT Nickel Touch
GT Gold Touch
CT Copper Touch
ZT Bronze Touch
TT Toffee Touch
PWT Pewter Touch
BST Blackened Steel Touch
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
DPL Deep Lens 8″H Overall Depth = 9 3/4″

LIGHT OUTPUT

LXX = ~ 83 LPW Delivered Lumens (Example: L60= 60 x 83 = 4,980 Lumens)
