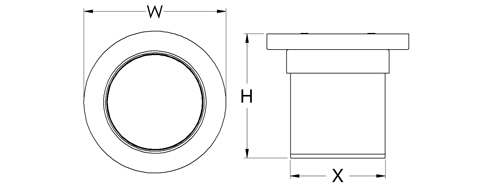

Print This PageDIMENSIONS
| W | H | X | BASE MODEL NO. |
| 4 1/2″ | 4″ | 3″ | S7315-L05A |
| 4 1/2″ | 5 1/2″ | 3″ | S7316-L05A |
| 4 1/2″ | 7″ | 3″ | S7317-L05A |
SPECIFICATIONS
Driver: 120V Only
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Flat Aluminum End Cap (Standard)
• Opal Matte Acrylic Lens
• Solid Aluminum Material
• 90 CRI
• 120V Only
• LED ELV Dimming
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + Option Code
| S7315-L05A | + | 927K | + | PT | + | Option |
| S7316-L05A | 930K | CC | ||||
| S7317-L05A | 935K | BA | ||||
| 940K | NT | |||||
| GT | ||||||
| CT | ||||||
| ZT | ||||||
| TT | ||||||
| PWT | ||||||
| BST |
FINISHES
| BA Brushed Aluminum NT Nickel Touch GT Gold Touch CT Copper Touch ZT Bronze Touch |
TT Toffee Touch PWT Pewter Touch BST Blackened Steel Touch CC Custom Painted Finish PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
OEC Opal Acrylic End Cap

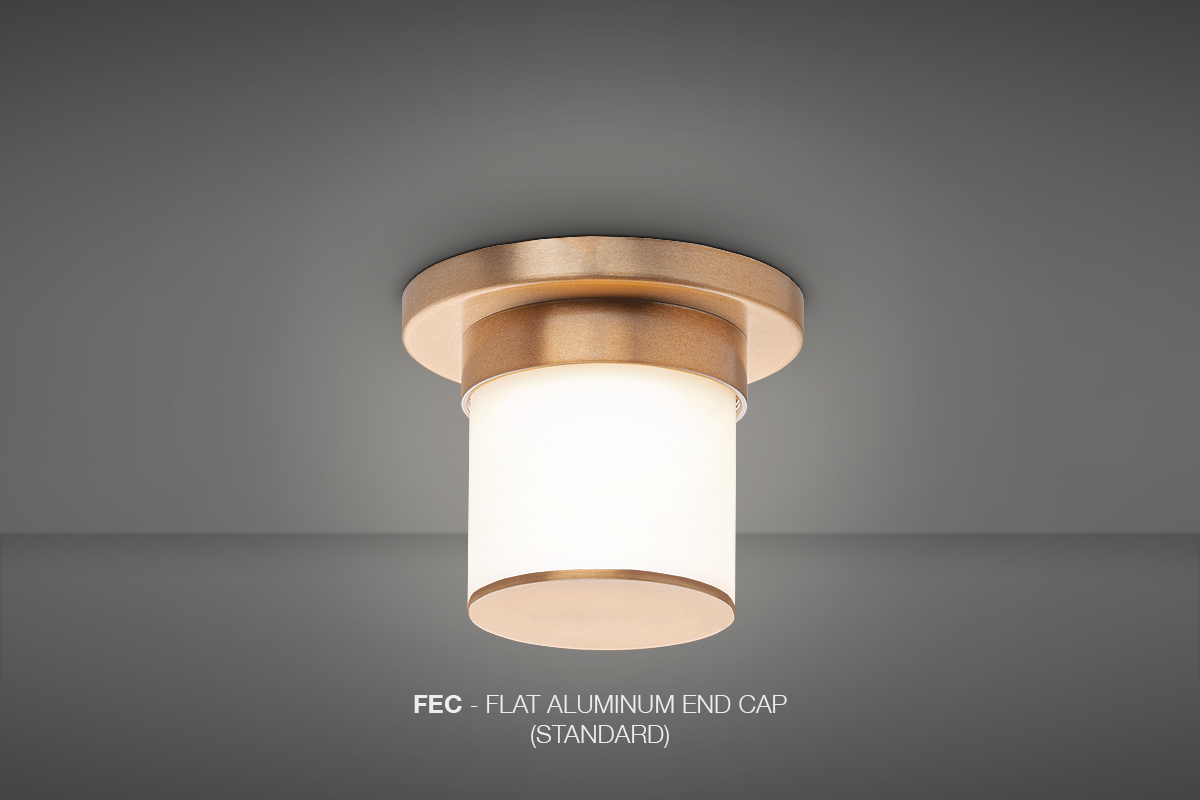

FEC Flat Aluminum End Cap (Standard)
LIGHT OUTPUT
LXX = ~ 70 LPW Delivered Lumens (Example: L05A = 5W x 70LPW = 350 Lumens)
