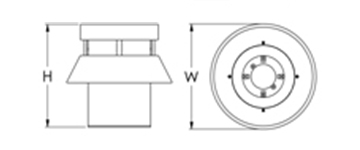

DIMENSIONS

W H BASE MODEL NO.
10 1/8″ 10″ S7180-L18
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• Heavy Gauge Spun Metal Trim
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S7180-L18 + 27K + PT CT + Option
30K BA GT
35K BB NT
40K BC ZT
BN
FINISHES

BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome
BN Brushed Nickel
PT Painted Finishes*
CT Copper Touch
GT Gold Touch
NT Nickel Touch
ZT Bronze Touch
*(Specify Color Code from the list of Powdercoat finishes [except interior only metallics])
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote – Requires Additional Power Cable)

LIGHT OUTPUT

LXX = ~ 68 LPW Delivered Lumens (Example: L18= 18 x 68 = 1,224 Lumens)
