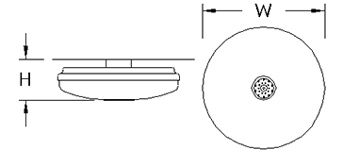

DIMENSIONS

W H BASE MODEL NO.
18″ 7 5/8″ S7175-L36
23″ 7 5/8″ S7176-L60
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• 3/16 Clear Prismatic Acrylic Lens
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S7175-L36 + 27K + PT + Option
S7176-L60 30K WH
35K
40K
FINISHES

WH White PT Painted Finishes*
*(Specify Color Code from Our Standard Finish Chart)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote – Requires Additional Power Cable)

LIGHT OUTPUT

LXX = ~ 69 LPW Delivered Lumens (Example: L36= 36 x 69 = 2,484 Lumens)
