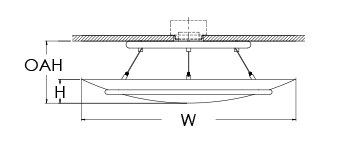

DIMENSIONS

W OAH RD RW BASE MODEL NO.
24″ 7″ 7″ 14 S7165-L36
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• Ceiling trim ring painted white standard
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S7165-L36 + 27K + PT BN + Option
30K BA PB
35K BB PC
40K BC PN
FINISHES
BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome
BN Brushed Nickel		 PB Polished Brass
PC Polished Chrome
PN Polished Nickel
PT Painted Finishes*
*(Specify Color Code from the list of Powdercoat finishes [except interior only metallics])
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote – Requires Additional Power Cable)
FAA Faux Alabaster Acrylic (Hand Painted) [FA-1 White; FA-2, Antique; FA-3 Grey; FA-4 Taupe; FA-5 Honey, FA-6 Tuscan]

LIGHT OUTPUT

LXX = ~ 51 LPW Delivered Lumens (Example: L36= 36 x 51 = 1,836 Lumens)
