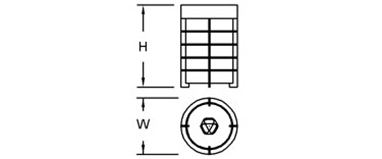

DIMENSIONS

W H BASE MODEL NO.
6 1/4″ 9 1/8″ S7135-L18
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S7135-L18 + 27K + PT BN + Option
30K BA PB
35K BB PC
40K BC PN
GT NT
CT ZT
FINISHES

BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome
BN Brushed Nickel
PB Polished Brass
PC Polished Chrome
PN Polished Nickel
CT Copper Touch
GT Gold Touch
NT Nickel Touch
ZT Bronze Touch
PT Painted Finishes*
*(Specify Color Code from Our Standard Finish Chart)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote – Requires Additional Power Cable)
FAA Faux Alabaster Acrylic (Hand Painted) [FA-1 White; FA-2, Antique; FA-3 Grey; FA-4 Taupe; FA-5 Honey, FA-6 Tuscan]
WOG Opal Glass

LIGHT OUTPUT

LXX = ~ 69 LPW Delivered Lumens (Example: L18= 18 x 69 = 1,242 Lumens)
