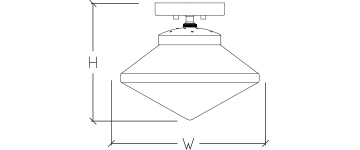

DIMENSIONS

W H BASE MODEL NO.
10″ 7 1/2″ S7080-L12
14″ 11″ S7081-L12
18″ 15″ S7082-L24
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

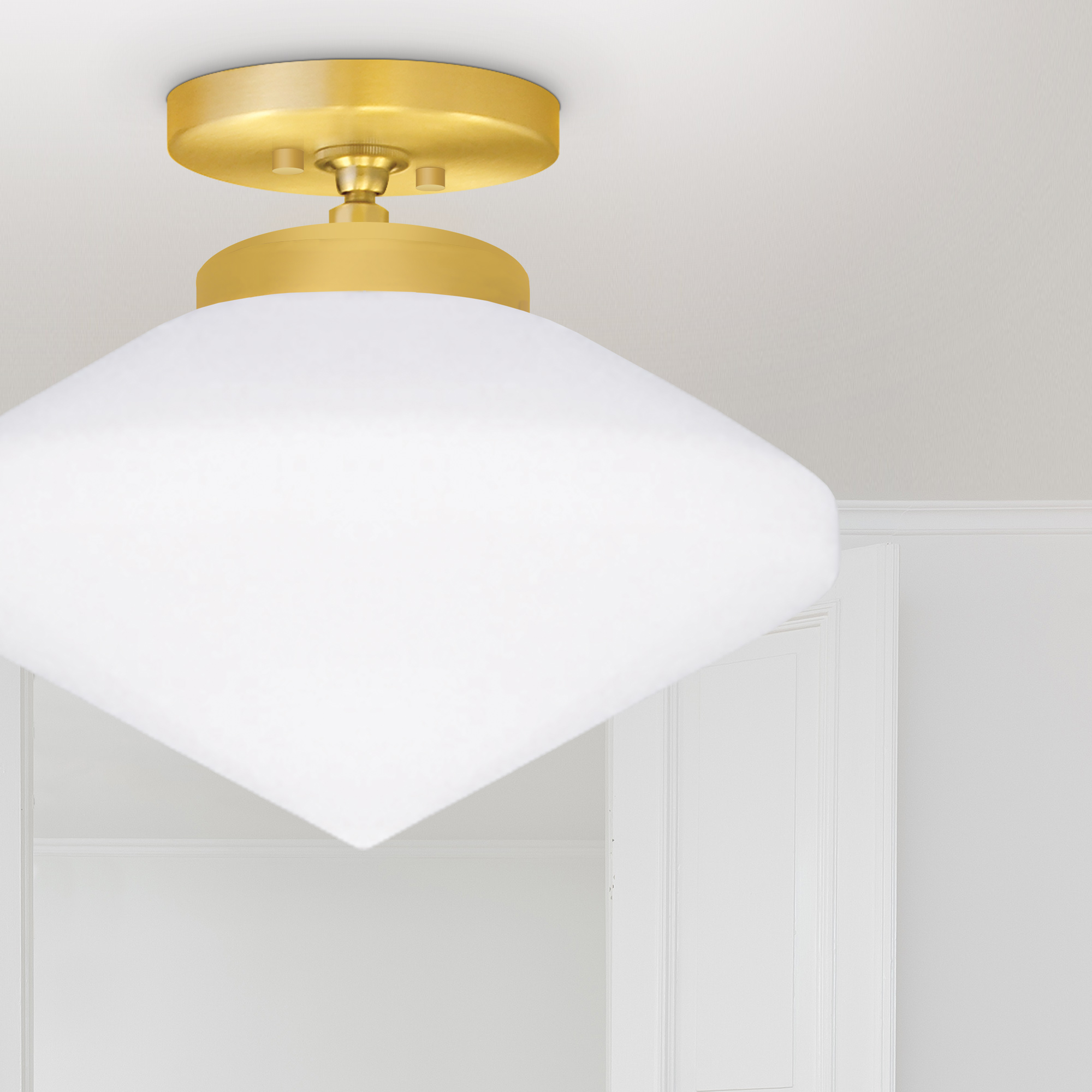

• Opal Glass Diffuser
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S7080-L12 + 27K + PT + Option
S7081-L12 30K AP
S7082-L24 35K BA
40K PB
PC
CC
FINISHES

AP Aged Pewter
BA Brushed Aluminum
PB Polished Bras
PC Polished Chrome
CC Custom Painted Finish
PT Painted Finishes*
*(Specify Color Code from Our Standard Finish Chart)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote – Requires Additional Power Cable)

LIGHT OUTPUT

LXX = ~ 75 LPW Delivered Lumens (Example: L12= 12 x 75 = 900 Lumens)
