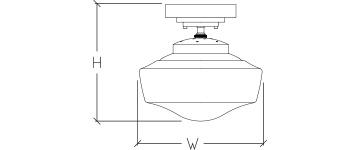

DIMENSIONS

W H BASE MODEL NO.
10″ 8 1/2″ S7075-L12
14″ 12″ S7076-L12
18″ 14 1/2″ S7077-L24
18″ 14 1/2″ S7077-L39
18″ 14 1/2″ S7077-L52
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

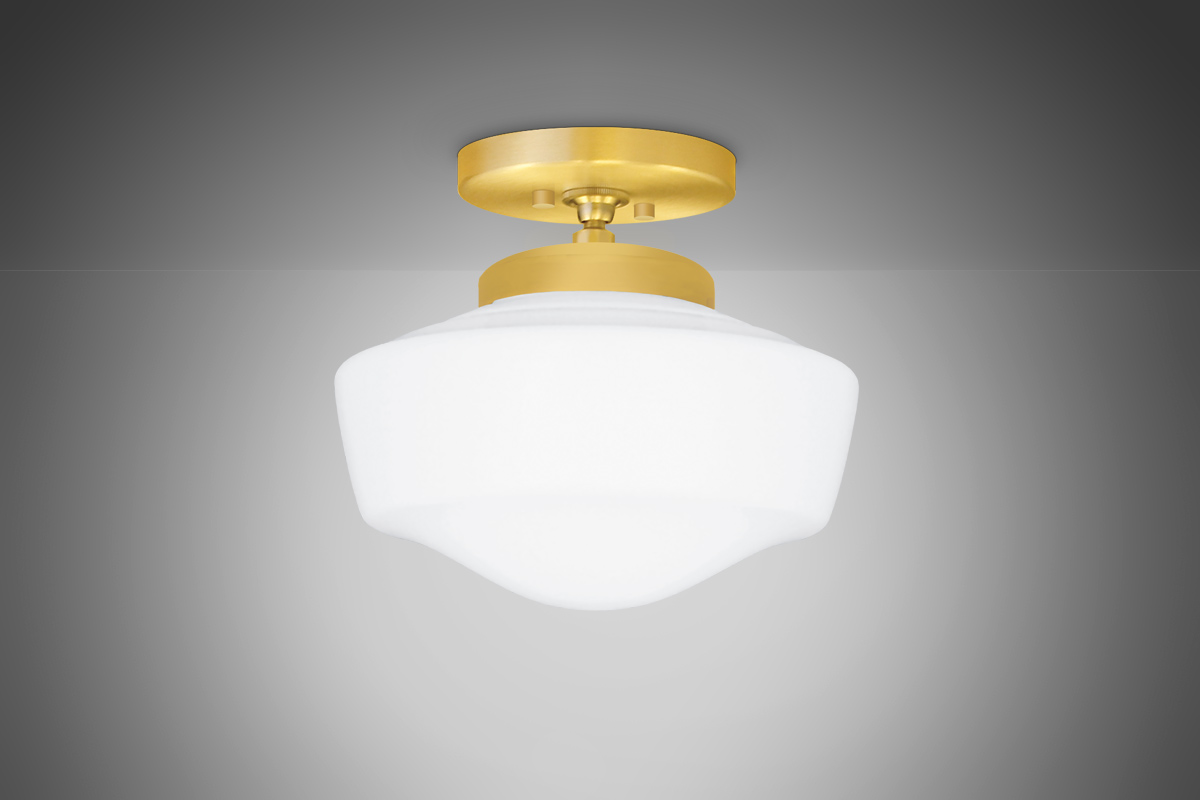

• Opal Glass Diffuser
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S7075-L12 + 27K + PT NT + Option
S7076-L12 30K BA ZT
S7077-L24 35K PB TT
S7077-L39 40K PC PWT
S7077-L52 GT BST
CT CC
FINISHES
BA Brushed Aluminum
PB Polished Brass
PC Polished Chrome
GT Gold Touch
CT Copper Touch
NT Nickel Touch		 ZT Bronze Touch
TT Nickel Touch
BST Blackened Steel Touch
PWT Pewter Touch
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)

LIGHT OUTPUT

LXX = ~ 100 LPW Delivered Lumens (Example: L24= 24W x 100LPW = 2400 Lumens)
