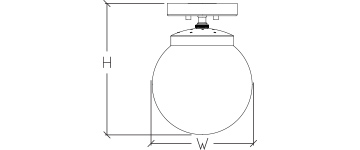

DIMENSIONS

W H BASE MODEL NO.
10″ 12 1/2″ S7070-L12
14″ 17″ S7071-L12
18″ 20 1/2″ S7072-L24
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

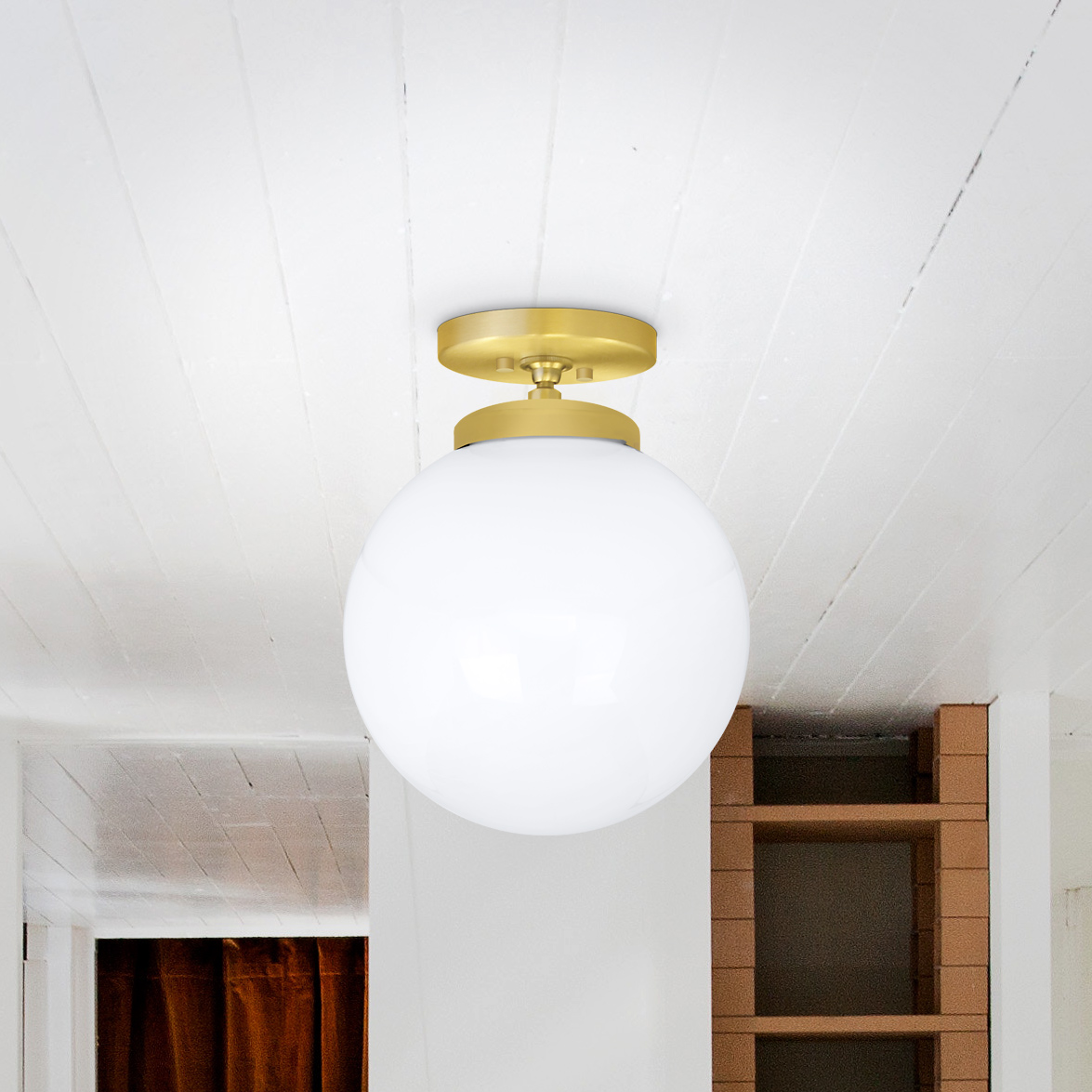

• Opal Glass Diffuser
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S7070-L12 + 27K + PT + Option
S7071-L12 30K AP
S7072-L24 35K BA
40K PB
PC
CC
FINISHES
AP Aged Pewter
BA Brushed Aluminum
PB Polished Brass		 PC Polished Chrome
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)

LIGHT OUTPUT

LXX = ~ 75 LPW Delivered Lumens (Example: L12= 12W x 75LPW = 900 Lumens)
