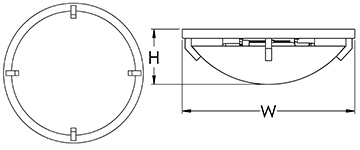

DIMENSIONS

W H BASE MODEL NO.
14″ 5″ S7060-L16
18″ 5 1/4″ S7061-L24
24″ 5 1/2″ S7062-L24
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic Bowl
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S7060-L16 + 27K + PT + Option
S7061-L24 30K BB
S7062-L24 35K BC
40K PB
PC
FINISHES

BB Brushed Brass
BC Brushed Chrome
PB Polished Brass
PC Polished Chrome
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]

LIGHT OUTPUT

LXX = ~ 63 LPW Delivered Lumens (Example: L16= 16W x 63LPW = 1,008 Lumens)
