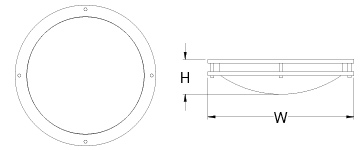

DIMENSIONS

W H BASE MODEL NO.
16 1/2″ 4″ S7040-L24
22″ 6 1/2″ S7041-L36
28″ 7″ S7042-L60
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

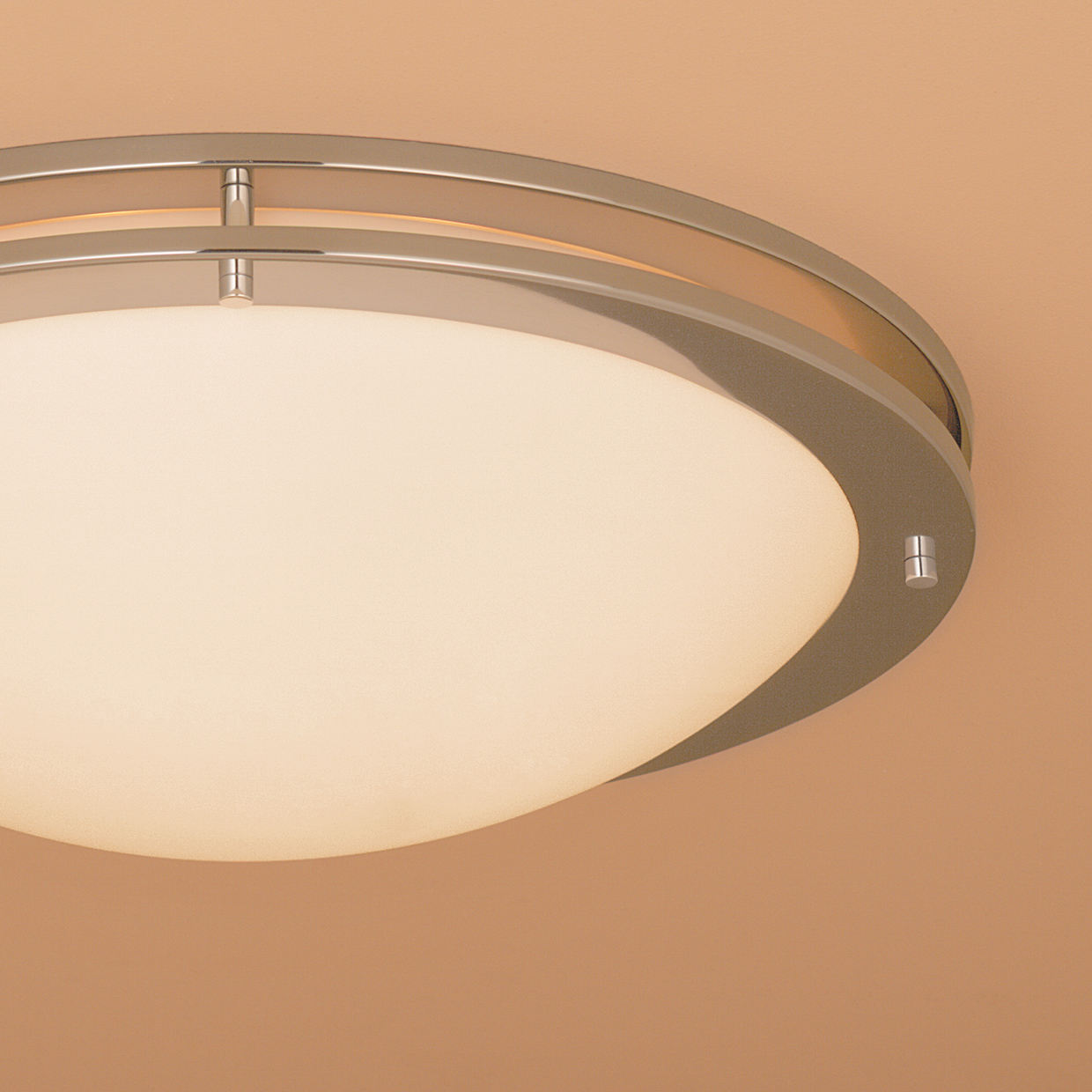

• Opal Matte Acrylic Bowl
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S7040-L24 + 27K + PT NT + Option
S7041-L36 30K BB ZT
S7042-L60 35K BC TT
40K PB PWT
PC BST
CT BA
GT
FINISHES

BB Brushed Brass
BC Brushed Chrome
BA Brushed Aluminum
PB Polished Brass
PC Polished Chrome
CT Copper Touch
GT Gold Touch
NT Nickel Touch
ZT Bronze Touch
TT TT Touch
PWT Pewter Touch
BST Blackened Steel Touch
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]
NEW OMA Opal Matte Glass (Available for S7040 and S7041 Sizes)

LIGHT OUTPUT

LXX = ~ 63 LPW Delivered Lumens (Example: L24= 24W x 63LPW = 1,512 Lumens)
