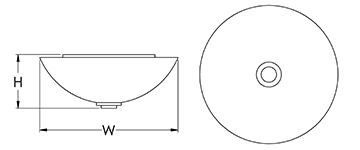

Print This PageDIMENSIONS
| W | H | BASE MODEL NO. |
| 18″ | 7″ | S7000-L16 |
| 24″ | 7″ | S7001-L24 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Opal Matte Acrylic Bowl
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. – Lamp Code + CCT + Finish + Option Code
| S7235-L24 | + | 27K | + | PT | + | Option |
| 30K | BA | |||||
| 35K | PB | |||||
| 40K | PC |
FINISHES
| BA Brushed Aluminum PB Polished Brass |
PC Polished Chrome PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
EML Emergency Battery Pack with LED Lighting (Remote)
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]
LIGHT OUTPUT
LXX = ~ 63 LPW Delivered Lumens (Example: L16= 16 x 63 = 1,008 Lumens)
