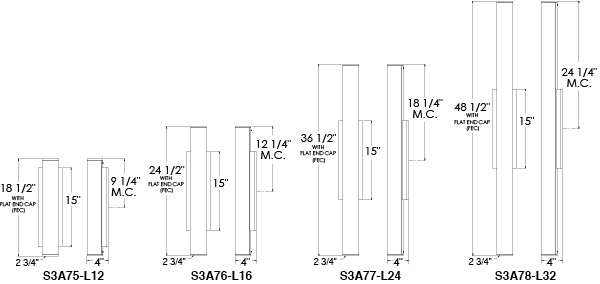

Print This PageDIMENSIONS
| W | H | D | MC | BASE MODEL NO. |
| 2 3/4″ | 18 1/2″ | 4″ | 9 1/4″ | S3A75-L12 |
| 2 3/4″ | 24 1/2″ | 4″ | 12 1/4″ | S3A76-L16 |
| 2 3/4″ | 36 1/2″ | 4″ | 18 1/4″ | S3A77-L24 |
| 2 3/4″ | 48 1/2″ | 4″ | 24 1/4″ | S3A78-L32 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Extruded Opal Lens
• Vertical or Horizontal Mounting
• Aluminum Body Parts
• ADA Compliant
• Listed for damp location
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + End Cap + Option Code
| S3A75-L12 | + | 27K | + | PT | + | FEC | + | Option | |
| S3A76-L16 | 30K | BA | VEC | ||||||
| S3A77-L24 | 35K | GT | SEC | ||||||
| S3A78-L32 | 40K | NT | DEC | ||||||
| ZT | |||||||||
| CT | |||||||||
| TT | |||||||||
| PWT | |||||||||
| BST |
FINISHES
| BA Brushed Aluminum NT Nickel Touch GT Gold Touch CT Copper Touch ZT Bronze Touch |
TT Bronze Touch PWT Pewter Touch BST Blackened Steel Touch PT Powder Coated Finishes |
(Specify Color Code from the list of Powder Coating Finishes)

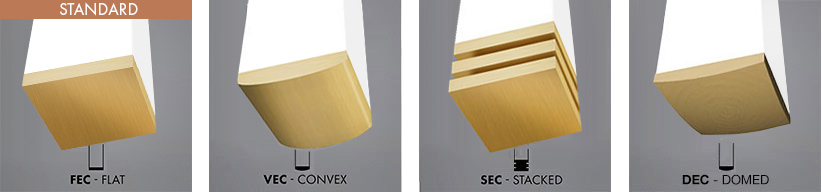

END CAP OPTIONS
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
LIGHT OUTPUT
LXX = ~ 89 LPW Delivered Lumens (Example: L12= 12W x 89LPW = 1,068 Lumens)
