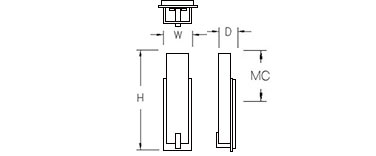

Print This PageDIMENSIONS
| W | H | D | MC | BASE MODEL NO. |
| 6″ | 21″ | 4″ | 10.5″ | S3A35-L12 |
| 6″ | 21″ | 4″ | 10.5″ | S3A35-L16 |
| 6″ | 27″ | 4″ | 13.5″ | S3A36-L16 |
| 6″ | 27″ | 4″ | 13.5″ | S3A36-L20 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required (by others).
FEATURES
• Opal Matte Acrylic Lens
• Solid Aluminum Material
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + Option Code
| S3A35-L12 | + | 27K | + | PT | ZT | + | Option |
| S3A35-L16 | 30K | BA | PWT | ||||
| S3A36-L16 | 35K | NT | BST | ||||
| S3A36-L20 | 40K | GT | CC | ||||
| CT |
FINISHES
| BA Brushed Aluminum NT Nickel Touch GT Gold Touch CT Copper Touch ZT Bronze Touch |
PWT Pewter Touch BST Blackened Steel Touch CC Custom Painted Finish PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
LIGHT OUTPUT
LXX = ~ 85 LPW Delivered Lumens (Example: L16= 16W x 85LPW = 1,360 Lumens)
