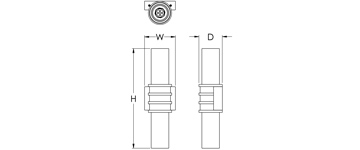

DIMENSIONS

W H D MC BASE MODEL NO.
5 1/4″ 17″ 4″ 8 1/2″ S3990-L15
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

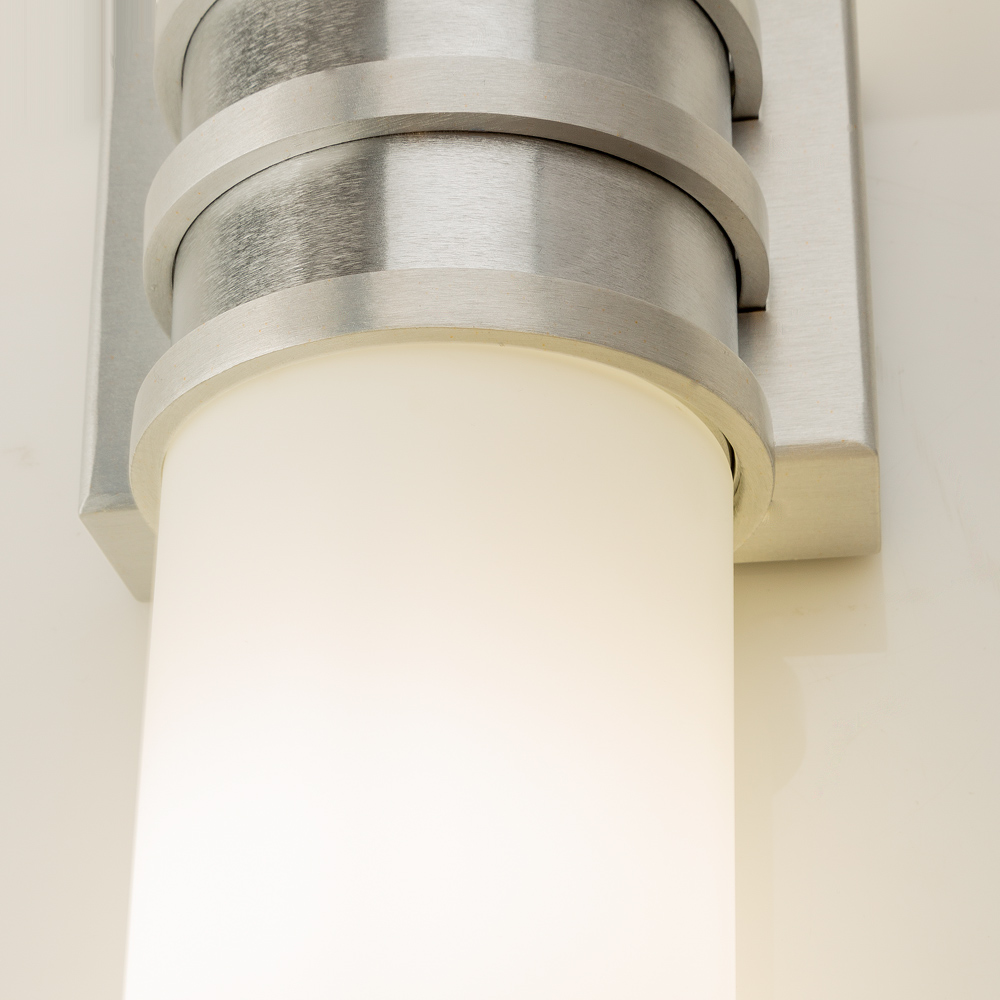

• Opal Matte Glass
• Solid Metal Bar Trim
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3990-L15 + 27K + PT + Option
30K BA
35K BB
40K BN
FINISHES

BA Brushed Aluminum
BB Brushed Brass
BN Brushed Nickel
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)

LIGHT OUTPUT

LXX = ~ 63 LPW Delivered Lumens (Example: L15= 15 x 63 = 945 Lumens)
