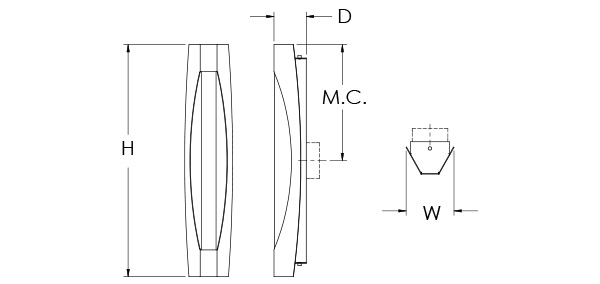

DIMENSIONS

W H D MC BASE MODEL NO.
5 3/8″ 26″ 3 3/4″ 13″ S3975-L24
6 1/8″ 38″ 3 3/4″ 19″ S3976-L40
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Aluminum Housing
• Opal Matte Acrylic Diffuser
• ADA Compliant
• Made in USA
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish +  Option Code

S3975-L24 + 27K + PT + Option
S3976-L40 30K BA
35K GT
40K NT
ZT
CT
TT
PWT
BST
FINISHES

BA Brushed Aluminum
NT Nickel Touch
GT Gold Touch
CT Copper Touch
ZT Bronze Touch
TT Bronze Touch
PWT Pewter Touch
BST Blackened Steel Touch
PT Powder Coated Finishes

(Specify Color Code from the list of Powder Coating Finishes)

OPTIONS

EML Remote 10W Emergency LED Battery Backup

LIGHT OUTPUT

LXX = ~ 65 LPW Delivered Lumens (Example: L24= 24 x 65 = 1,560 Lumens)
