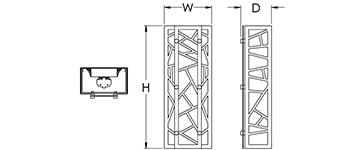

DIMENSIONS
W | H | D | MC | BASE MODEL NO. |
6 1/8″ | 16″ | 4″ | 8″ | S3970-L24 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Opal Matte Acrylic
• Solid Aluminum Material
• ADA Compliant
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + Option Code
S3970-L24 | + | 27K | + | PT | + | Option |
30K | BA | |||||
35K | BN | |||||
40K |
FINISHES
BA Brushed Aluminum BN Brushed Nickel |
PT Powder Coated Finishes* |
*(Specify Color Code from the list of Powder Coating Finishes) |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
LIGHT OUTPUT
LXX = ~ 75 LPW Delivered Lumens (Example: L24= 24W x 75LPW = 1,800 Lumens)
