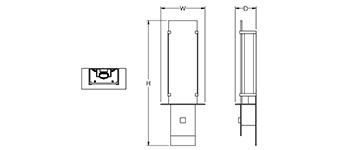

DIMENSIONS

W H D MC BASE MODEL NO.
8 1/2″ 24″ 4″ 10″ S3945-L18
13″ 35″ 4″ 10″ S3946-L24
13″ 41″ 4″ 10″ S3947-L32
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3945-L18 + 27K + PT + Option
S3946-L24 30K
S3947-L32 35K
40K
FINISHES

PT Painted Finishes*
*(Specify Color Code from the list of Powdercoat finishes [except interior only metallics])

OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)
FAA Faux Alabaster Acrylic (Hand Painted) [FA-1 White; FA-2 Antique; FA-3 Grey; FA-4 Taupe; FA-5 Honey; FA-6 Tuscan]

LIGHT OUTPUT

LXX = ~ 69 LPW Delivered Lumens (Example: L18= 18 x 69 = 1,242 Lumens)
