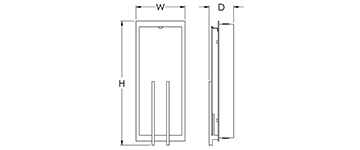

DIMENSIONS

W H D MC BASE MODEL NO.
7 1/2″ 19″ 3 3/4″ 9 1/4″ S3940-L16
7 1/2″ 27″ 3 3/4″ 13 1/2″ S3941-L24
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

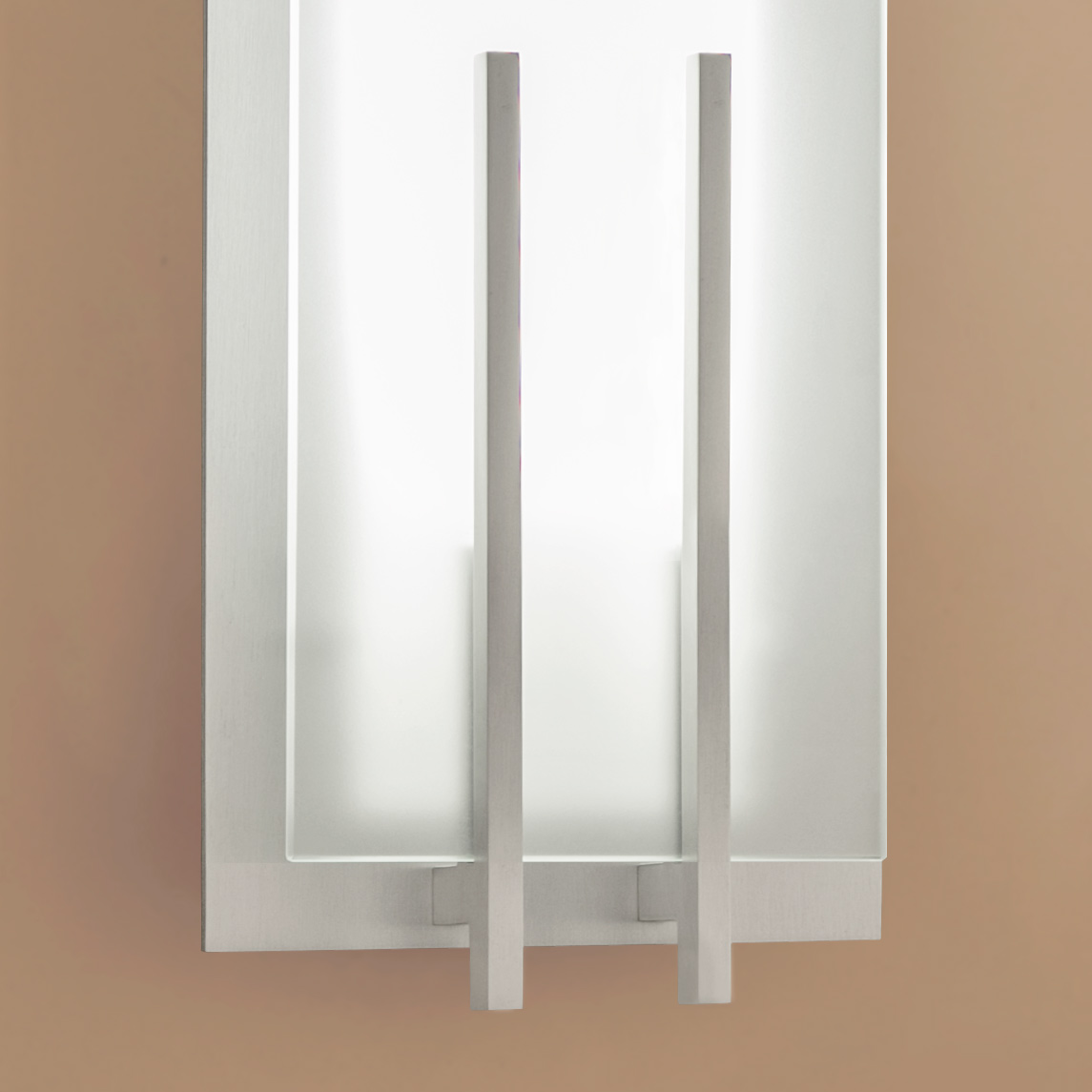

FEATURES

• Solid Aluminum or Brass Material
• White Sandblasted Glass
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3940-L16 + 27K + PT + Option
S3941-L24 30K BA
35K BN
40K
FINISHES

BA Brushed Aluminum
BN Brushed Nickel
PT Painted Finishes*
*(Specify Color Code from the list of Powdercoat finishes [except interior only metallics])
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)

LIGHT OUTPUT

LXX = ~ 69 LPW Delivered Lumens (Example: L16= 16 x 69 = 1,104 Lumens)
