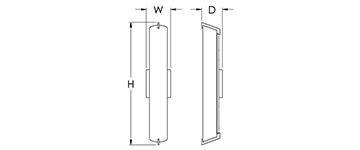

Print This PageDIMENSIONS
| W | H | D | MC | BASE MODEL NO. |
| 4 3/4″ | 24″ | 4″ | 12″ | S3920-L16 |
| 4 3/4″ | 30″ | 4″ | 15″ | S3921-L34 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Opal Matte Acrylic
• ADA Compliant
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + Option Code
| S3920-L16 | + | 27K | + | PT | + | Option |
| S3921-L34 | 30K | BA | ||||
| 35K | BB | |||||
| 40K | BC | |||||
| BN |
FINISHES
| BA Brushed Aluminum BB Brushed Brass BC Brushed Chrome |
BN Brushed Nickel PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
LIGHT OUTPUT
LXX = ~ 100 LPW Delivered Lumens (Example: L16= 16W x 100LPW = 1,600 Lumens)
