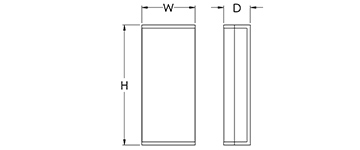

DIMENSIONS

W H D MC BASE MODEL NO.
8″ 18″ 4″ 9″ S3905-L22
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish Code + Fabric Code +  Option Code

S3905-L22 + 27K + PT +
LF01 LF08
+ Option
30K
LF02 LF09
35K
LF03 LF10
40K
LF04 LF11
LF05 LF12
LF05 LF12
LF06 LF13
LF07 LF14
FINISHES

PT Painted Finishes*
*(Specify Color Code from the list of Powdercoat finishes [except interior only metallics])

FABRIC

LF01 Huggy White LF02 Olive
LF03 Sage LF04 Orchre
LF05 Praline LF06 Linen
LF07 Canvas LF08 Butter
LF09 Breeze LF10 Ebony
LF11 Parchment LF12 Flan
LF13 Natural HF LF14 Merlot
CLF Custom Linen Fabric
Shade (Consult Factory)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)

LIGHT OUTPUT – (VARIES WITH SHADE COLOR)

LXX = ~ 69 LPW Delivered Lumens (Example: L16= 16 x 69 = 1,104 Lumens)[White Shade -LF01]
