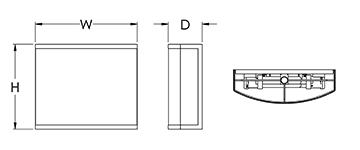

Print This PageDIMENSIONS
| W | H | D | MC | BASE MODEL NO. |
| 12″ | 10″ | 4″ | 6″ | S3900-L16 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Fabric Shade on Heavy Translucent White Styrene
• ADA Compliant
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish Code + Fabric Code + Option Code
| S3900-L16 | + | 27K | + | PT | + |
|
+ | Option | ||
| 30K |
|
|||||||||
| 35K |
|
|||||||||
| 40K |
|
|||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
FINISHES
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
FABRIC
| LF01 Huggy White | LF02 Olive |
| LF03 Sage | LF04 Orchre |
| LF05 Praline | LF06 Linen |
| LF07 Canvas | LF08 Butter |
| LF09 Breeze | LF10 Ebony |
| LF11 Parchment | LF12 Flan |
| LF13 Natural HF | LF14 Merlot |
| CLF Custom Linen Fabric Shade (Consult Factory) |
|
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
LIGHT OUTPUT – (VARIES WITH SHADE COLOR)
LXX = ~ 69 LPW Delivered Lumens (Example: L16= 16W x 69LPW = 1,104 Lumens)[White Shade -LF01]
