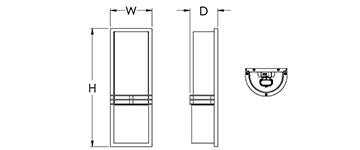

DIMENSIONS

W H D MC BASE MODEL NO.
6″ 17″ 4″ 8 1/2″ S3895-L12
9 1/4″ 20″ 4″ 10″ S3896-L16
9 1/4″ 26″ 4″ 13″ S3895-L24
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3895-L12 + 27K + PT + Option
S3896-L16 30K BA
S3897-L24 35K BB
40K BC
BN
FINISHES
BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome		 BN Brushed Nickel
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]

LIGHT OUTPUT

LXX = ~ 75 LPW Delivered Lumens (Example: L12= 12W x 75LPW = 900 Lumens)
