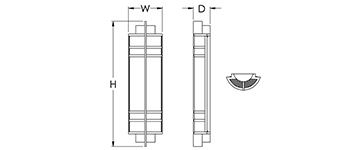

DIMENSIONS

W H D MC BASE MODEL NO.
8 1/8″ 31″ 4″ 15 1/2″ S3870-L16
8 1/8″ 43″ 4″ 21 1/2″ S3871-L24
8 1/8″ 55″ 4″ 27 1/2″ S3872-L32
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• Solid Aluminum Material
• Solid Aluminum Accent Bars
• Regressed Perforated Diffuser (Top & Bottom)
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3870-L16 + 27K + PT + Option
S3871-L24 30K BA
S3872-L32 35K BN
40K
FINISHES

BA Brushed Aluminum
BN Brushed Nickel
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]

LIGHT OUTPUT

LXX = ~ 69 LPW Delivered Lumens (Example: L16= 16 x 69 = 1,104 Lumens)
