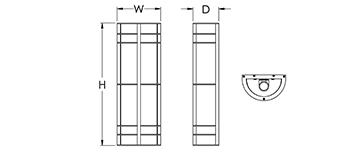

DIMENSIONS

W H D MC BASE MODEL NO.
6 3/4″ 19″ 4″ 9 1/2″ S3855-L16
9″ 24″ 5 1/2″ 12″ S3856-L32
6 3/4″ 19″ 4″ 9 1/2″ S3858-L16
9″ 24″ 5 1/2″ 12″ S3859-L32
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• Solid Bar Stock Material
• ADA Compliant (Only S3855 and S3858)
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3855-L16 + 27K + PT + Option
S3856-L32 30K BA
S3858-L16 35K BB
S3859-L32 40K BC
BN
FINISHES

BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome
BN Brushed Nickel
PT Painted Finishes*
*(Specify Color Code from the list of Powdercoat finishes [except interior only metallics])
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)
BTL Bottom Lens
TPL Top Lens
FAA Faux Alabaster Acrylic (Hand Painted) [FA-1 White; FA-2 Antique; FA-3 Grey; FA-4 Taupe; FA-5 Honey; FA-6 Tuscan]

LIGHT OUTPUT

LXX = ~ 68 LPW Delivered Lumens (Example: L16= 16 x 68 = 1,088 Lumens)
