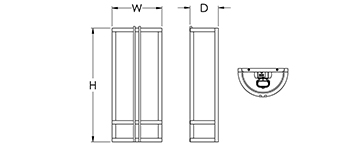

DIMENSIONS

W H D MC BASE MODEL NO.
7″ 16″ 4″ 8″ S3850-L24
9″ 20″ 5 1/2″ 10″ S3851-L24
9″ 26″ 5 1/2″ 13″ S3852-L32
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• Solid Bar Stock Material
• ADA Compliant (Only S3850)
• Bottom and Top Opal Acrylic Lenses
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3850-L24 + 27K + PT + Option
S3851-L24 30K BA
S3852-L32 35K BB
40K BC
BN
FINISHES

BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome
BN Brushed Nickel
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]

LIGHT OUTPUT

LXX = ~ 68 LPW Delivered Lumens (Example: L24= 24W x 68LPW = 1,632 Lumens)
