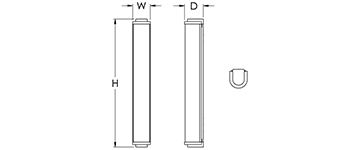

DIMENSIONS

W H D MC BASE MODEL NO.
3 1/2″ 25 1/2″ 4″ 12 3/4″ S3845-L16
3 1/2″ 37 1/2″ 4″ 18 3/4″ S3846-L24
3 1/2″ 49 1/2″ 4″ 24 3/4″ S3847-L32
3 1/2″ 61 1/2″ 4″ 30 3/4″ S3848-L48
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to 2″ x 4″ Junction Boxes (by others) With Hardware Provided.

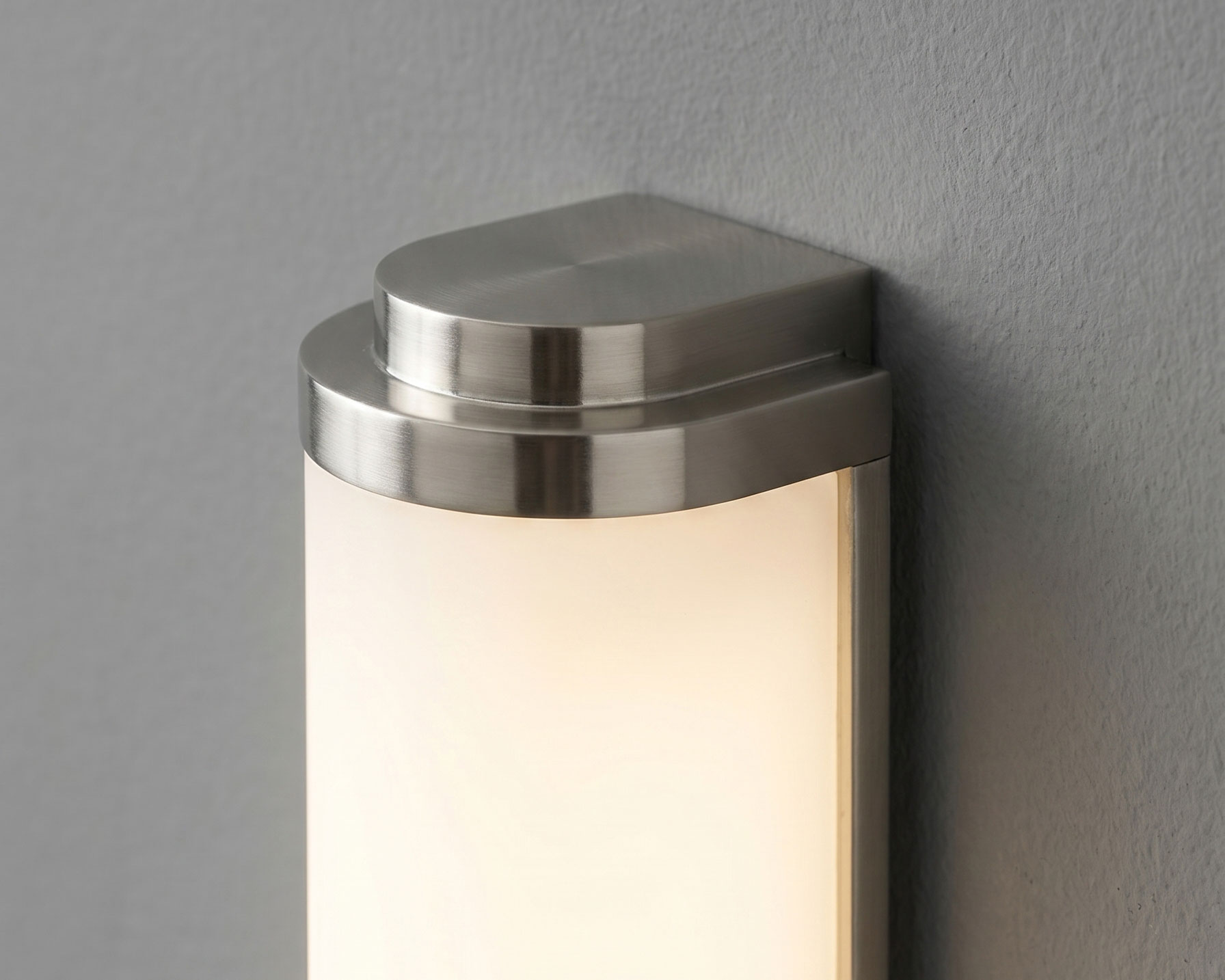

FEATURES

• Opal Matte Acrylic
• Die-Cast Aluminum End Caps
• Extruded Aluminum Side Rails
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3845-L16 + 27K + PT PWT + Option
S3846-L24 30K NT BST
S3847-L32 35K GT TT
S3848-L48 40K CT BA
ZT
FINISHES
BA Brushed Aluminum
NT Nickel Touch
GT Gold Touch
CT Copper Touch
ZT Bronze Touch		 PWT Pewter Touch
BST Blackened Steel Touch
TT Toffee Touch
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]

LIGHT OUTPUT

LXX = ~ 93 LPW Delivered Lumens (Example: L16= 16W x 93LPW = 1,488 Lumens)
